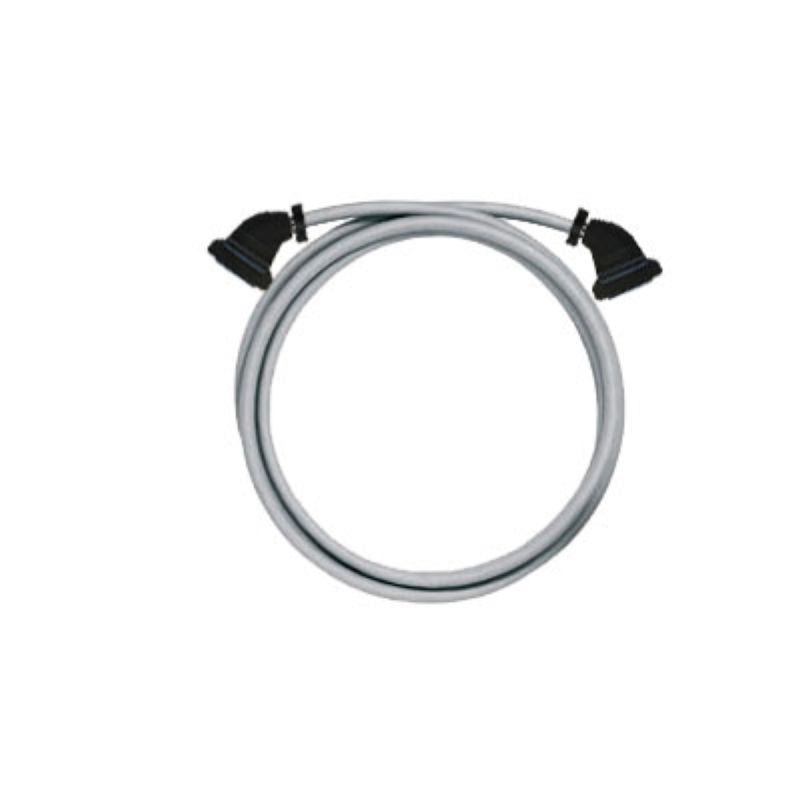

7789301010 - 1m LiYY PAC Cable with HE10 20P Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This pre-assembled PAC cable, specifically a Cable LiYY, features a cross-section of 025 mm² and includes a connector designed for PLC applications, known as a FLAT CABLE CONNECTOR HE10 20P With a length of 1 meter and an outer diameter of 86 mm (with a tolerance of ± 1 mm), this cable is engineered for efficient digital signal transmission.

Features and Benefits:

•Net weight of 153.3 g.

•Operating temperature range from -10 to 50 °C.

•Storage temperature range from -10 to 60 °C.

•Electrical capacity of wire/shield is 300 pF/m.

•Capacity between wires is also 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Permissible current strength of maximum 1 A per path.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total current capacity is a maximum of 3 A.

•RoHS compliant material.

•Basic material made of PVC.

•Used for digital signal transmission.
