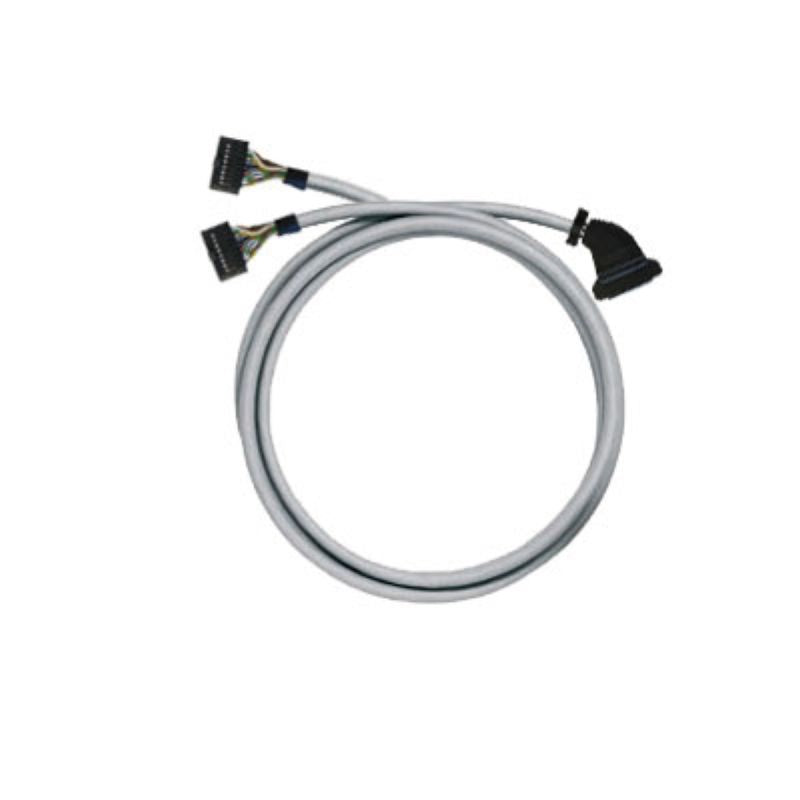

7789293020 - 2m LiYY Cable with 0.25 mm² Wire and Dual Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-STOP-HE20-V0-2M, a pre-assembled LiYY cable designed for seamless digital signal transmission This cable boasts a wire cross-section of 025 mm² and includes connectors at both ends for easy connectivity: a 2X flat cable connector HE10 16P on one side and a flat cable connector HE10 20P on the other Measuring 2 meters in length with an approximate outer diameter of 86 mm, this cable is not only functional but also adheres to RoHS standards for safety and environmental compliance.

Perfect for your digital connection needs!.

Features and Benefits:

•Net weight of 266 g.

•Operating temperature range of -10 to 50 °C.

•Storage temperature range of -10 to 60 °C.

•Capacity of wire/shield and wire/wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Permissible current strength per path rated at 1 A.

•Rated voltage specifications of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•Total maximum current capacity of 3 A.

•Basic material made from PVC.

•Suitable for digital signal transmission.
