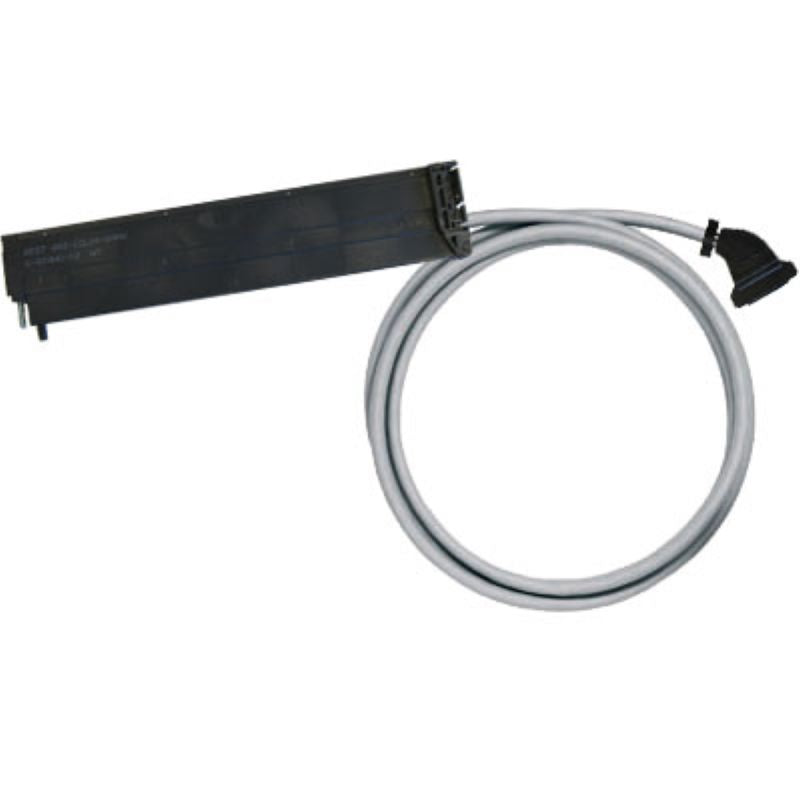

7789291040 - 4m Cable LiYY with SIEMENS Connectors, 0.25 mm², 20-Pole

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S400-HE20-V1-4M, a pre-assembled cable specifically crafted for digital signal management This cable features a sturdy Cable LiYY construction with a cross-section of 025 mm², ensuring reliable performance It comes equipped with connectors tailored for SIEMENS S7400 systems and a FLAT CABLE CONNECTOR HE10, guaranteeing robust connectivity With an outer diameter of about 86 mm, this cable supports a minimum of 20-pole connections, making it an excellent choice for your needs.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for digital signal applications.

•Composed of PVC material.

•Net weight of 550 g.

•Operating temperature range from -10 to 50°C and storage temperature range from -10 to 60°C.

•High-voltage test rated at 1 KV for 1 second.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance measurement of ≤ 80 mΩ/m.

•Total current maximum is 3 A.

Specifications:
