7789283030 - 3m Pre-Assembled LiYY Cable with SIEMENS & WEIDMUELLER Connectors

Description:

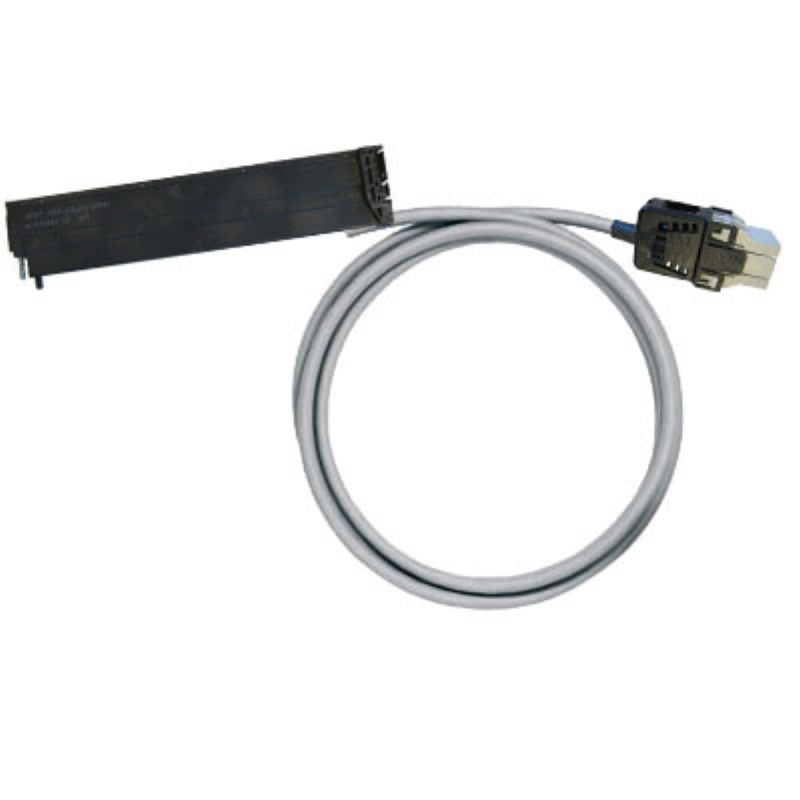

Introducing a versatile pre-assembled cable, expertly crafted for reliability This 3-meter long LiYY cable is tailored for digital signal applications, making it an excellent choice for a variety of electrical needs Its wire cross-section measures 025 mm², while the outer diameter is approximately 86 mm Connectivity is seamless with a SIEMENS S7400 connector on one end and a WEIDMUELLER RSV 12P male connector on the other.

This cable is RoHS compliant, ensuring it meets environmental standards Additionally, it operates effectively within temperature limits of -10 to 50 degrees Celsius, with a storage range of -10 to 60 degrees Celsius, making it a reliable choice for both operational and storage conditions.

Features and Benefits:

•Made of PVC material.

•Supports digital signals.

•Compliant with RoHS and REACH standards.

•Capacitance of 300 pF/m for both shield and wires.

•Can withstand high voltage of 1 KV for 1 second.

•Permissible current strength per path up to 1 A.

•Rated voltage up to 250 Vdc and 250 Vac.

•Low resistance of 80 mΩ/m.
