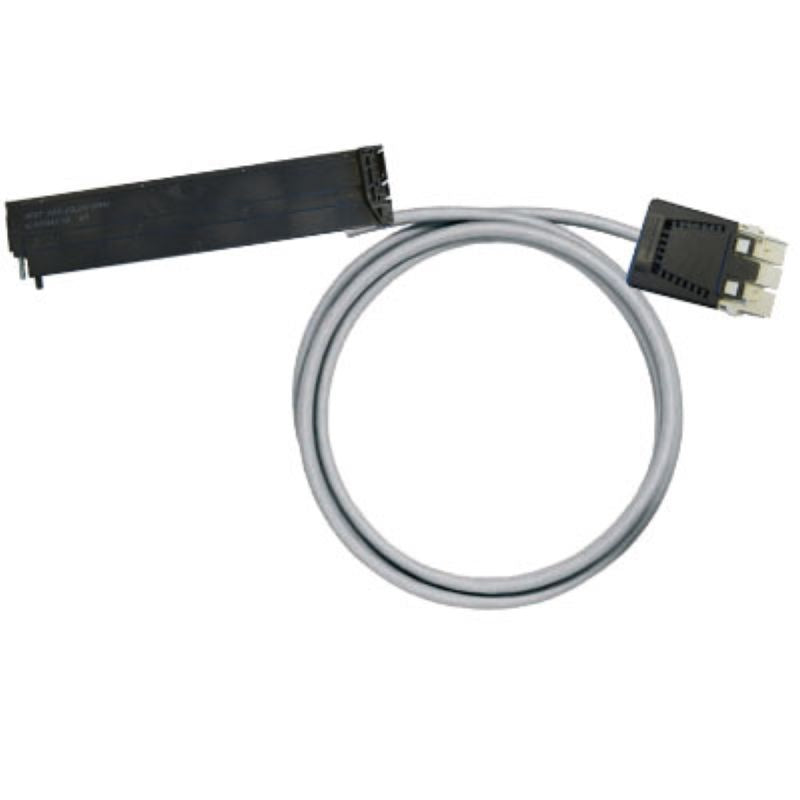

7789278050 - 5m Pre-assembled Cable with SIEMENS & WEIDMUELLER Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S400-RV36-V2-5M, a pre-wired cable engineered for optimal digital signal transmission This 5-meter long cable features a LiYY construction and is designed with a cross-sectional area of 025 mm² On one end, it is equipped with a 36-pin connector compatible with the SIEMENS S7400 model 6ES7492-1CL00-0AA0, while the other end boasts a WEIDMUELLER RSV 36P MALE connector With an outer diameter of around 11.

2 mm, this cable not only delivers excellent performance but also adheres to RoHS standards for environmental safety.

Features and Benefits:

•Manufactured from PVC.

•Capacitance for wire/shield and wire/wires is 300 pF/m.

•High voltage test rated for 1 KV for 1 second.

•Maximum current strength per path is 1 A.

•Rated voltage of up to 250 Vdc and 250 Vac.

•Resistance of max ≤ 80 mΩ/m.

•Total maximum current of 3 A.

•Suitable for digital signals.

Specifications:
