7789278020 - 2m LiYY Pre-assembled Cable with 36-Pole Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

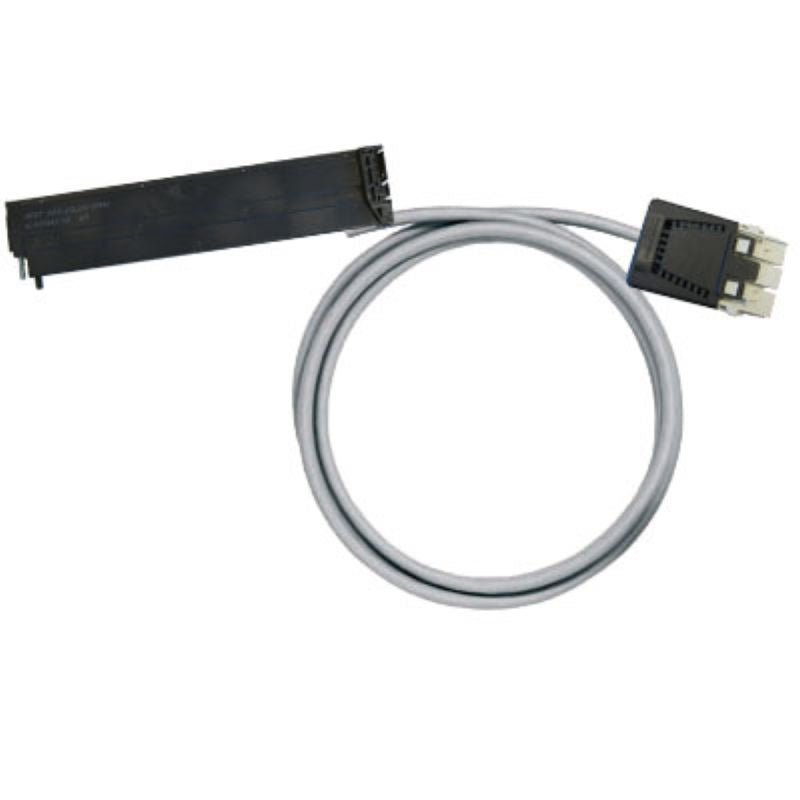

Introducing the PAC-S400-RV36-V2-2M, a ready-to-use cable optimized for transmitting digital signals This cable features a 025 mm² LiYY conductor and spans a length of 2 meters One end is fitted with a 36-pole connector from SIEMENS S7400, while the opposite end boasts a WEIDMUELLER RSV 36P male connector It adheres to RoHS standards, ensuring it meets environmental compliance requirements, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Cable constructed from PVC.

•High voltage test of 1 KV for 1 second.

•Permissible maximum current strength of 1 A per path.

•Rated for voltages up to 250 Vdc and 250 Vac.

•Resistance is less than or equal to 80 mΩ/m.

•Suitable for applications requiring digital signals.

Specifications:
