7789276040 - 4m Pre-assembled 0.25mm² Digital Cable with Siemens Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

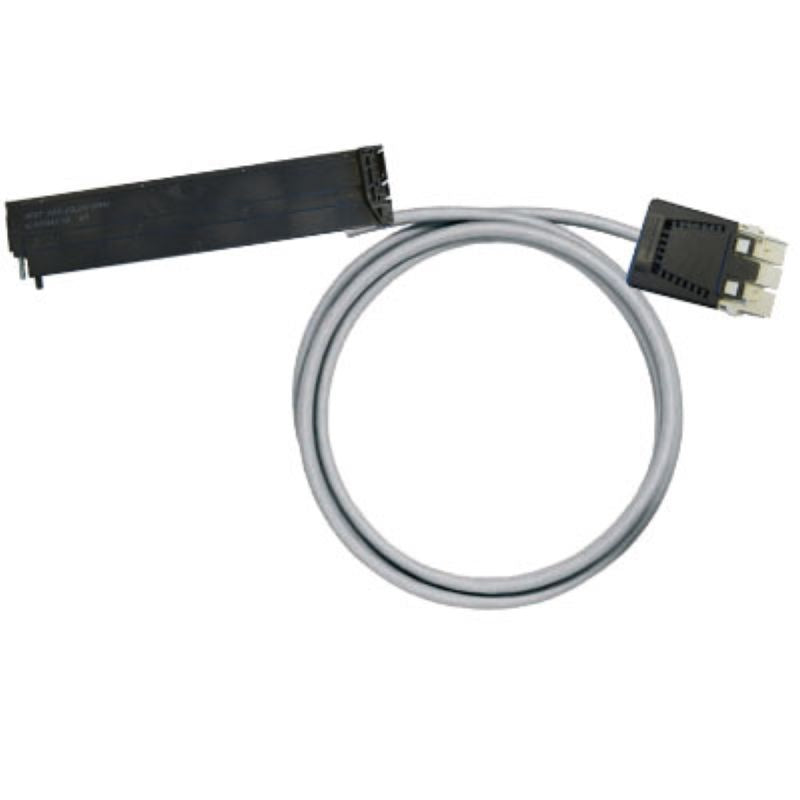

This pre-assembled PAC cable, classified as Cable LiYY, features a cross-section of 025 mm² and stretches 4 meters in length Engineered specifically for digital signal transmission, it adheres to ROHS standards The package includes connectors: a PLC connector from SIEMENS S7400 and an interface connector from WEIDMUELLER, supporting a substantial 36 poles for versatile connectivity.

Features and Benefits:

•Cable has an outer diameter of 11.2 ± 1 mm.

•Capacities for wire/shield and wire/wires are both 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Can handle a maximum current of 1 A per path.

•Rated for voltages less than or equal to 250 Vdc and 250 Vac.

•Resistance is under 80 mΩ/m.

•Total permissible current is a maximum of 3 A.

•Suitable for digital signal applications.

Specifications:
