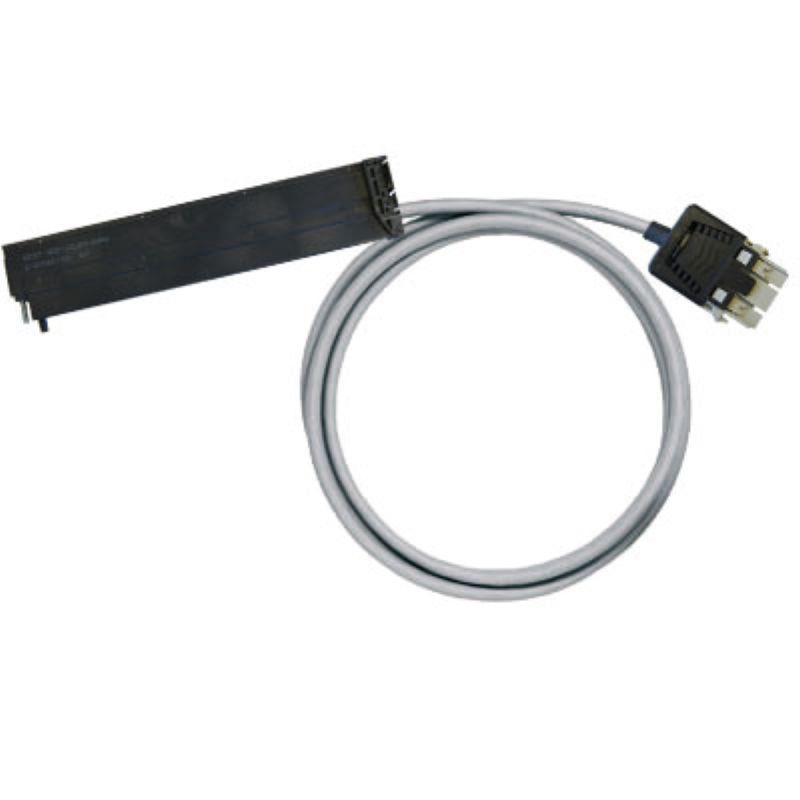

7789273040 - 4m LiYY 24-Pole PVC Cable for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S400-RV24-V0-4M, a meticulously crafted pre-assembled cable designed specifically for digital signal transmission With a wire cross-section of 025 mm² and a 24-pole configuration, this cable spans an impressive length of 4 meters and boasts an outer diameter of 92 ± 1 mm Constructed from durable PVC material, it adheres to RoHS standards, ensuring its eco-friendly credentials This cable is built to function efficiently within a temperature range of -10 to 50 °C, while storage conditions can extend from -10 to 60 °C.

Perfect for your digital applications, this cable combines quality and performance seamlessly.

Features and Benefits:

•Compatible with Siemens S7400 6ES7492-1CL00-0AA0 48P connector.

•Interfaces with Weidmueller RSV 24P male connector.

•High voltage test rating of 1 KV for 1 second.

•Permissible current strength can reach up to 1 A.

•Rated voltage of ≤ 250 Vdc ≤ 250 Vac.

•Capacity of wire/shield and wire/wires is 300 pF/m.

•Suitable for digital signal transmission.

Specifications:
