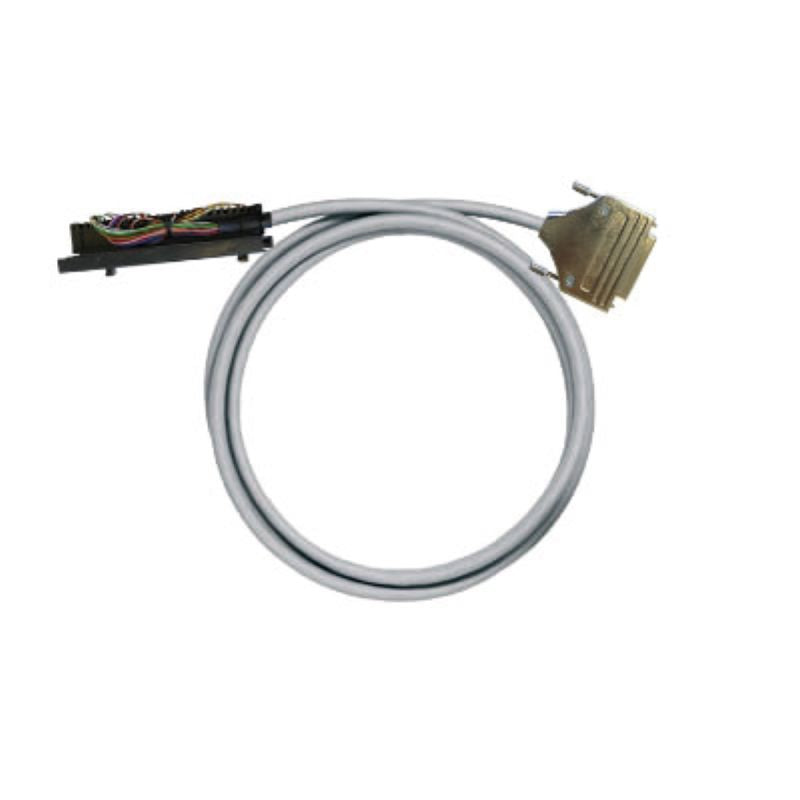

7789229080 - 8m PVC Cable for SIEMENS S7300, 0.25 mm²

7789229080 - 8m PVC Cable for SIEMENS S7300, 0.25 mm²

SKU: 7789229080   Download PDF

Select a Variant:
  • 7789229080 - 8m PVC Cable for SIEMENS S7300, 0.25 mm²
Qty:
Now $234.50   Web pricing policy
BEFORE   $0.00 Now $234.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the convenience of the pre-assembled PAC-S300-SD25-V1-8M cable, featuring a cross-section of 025 mm² Constructed from durable PVC, this cable is ideal for transmitting analogue signals, making it versatile for multiple uses With a generous length of 8 meters, it connects seamlessly to SIEMENS S7300 systems via a 25-pole SUB-D female interface It operates efficiently within a temperature range of -10 to 50 degrees Celsius and can be stored safely at temperatures from -10 to 60 degrees Celsius.

Features and Benefits:

    •Compliant with RoHS standards.

    •Designed for analogue signal applications.

    •Outer diameter of the cable is 10.15 ± 1 mm.

    •Net weight of the cable is 1,221 g.

Specifications:

 Cable length 8 m
 Connector PLC side SIEMENS S7300 6ES7921-3AH00-1AA0 20P
 Interface connector SUB-D FEMALE 25P
 Number of poles, min. 25-pole
 Wire cross-section 0.25 mm²
 Electrical Data {'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'High voltage test': '1 KV/1s', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '80 mΩ/m', 'Total current, max.': '3 A'}
 Temperatures {'Storage temperature': '-10...60 °C', 'Operating temperature': '-10...50 °C'}
 Environmental Product Compliance {'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
 General Data {'Basic material': 'PVC', 'Cable': 'Cable LiYCY'}
 Approvals {'ROHS Compliance Status': 'Compliant'}
 Classifications {'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
