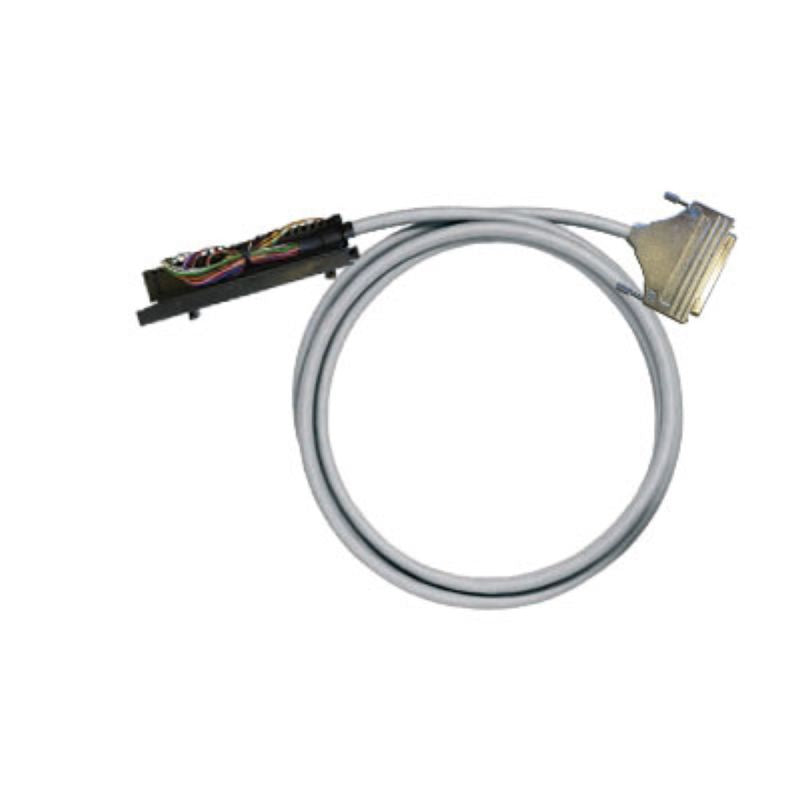

7789226050 - 5m PVC Cable with SIEMENS Connector, 0.25 mm² Thickness

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S300-SD37-V1-5M pre-assembled cable, specifically engineered for efficient analogue signal transmission This durable 5-meter cable boasts a wire thickness of 025 mm² and is crafted from high-quality PVC material It features a SIEMENS S7300 6ES7921-3AH00-1AA0 connector on one end and a SUB-D FEMALE 37P interface connector on the other, making it versatile for various applications.

The cable supports a maximum current of 3 A and is designed to safely accommodate voltages of up to 60 Vdc and 25 Vac, ensuring reliable performance in your electronic setups.

Features and Benefits:

•Compliant with RoHS standards.

•Has a net weight of 1,359 g.

•Operative temperature range from -10°C to 50°C.

•Equipped with a 37-pole connector.

•Outer diameter of 12.2 ± 1 mm.

•High voltage test rating of 1 KV for 1 second.

•Rated voltage ≤ 60 Vdc and ≤ 25 Vac.

•Resistance ≤ 80 mΩ/m.

•Designed for analogue signal transmission.
