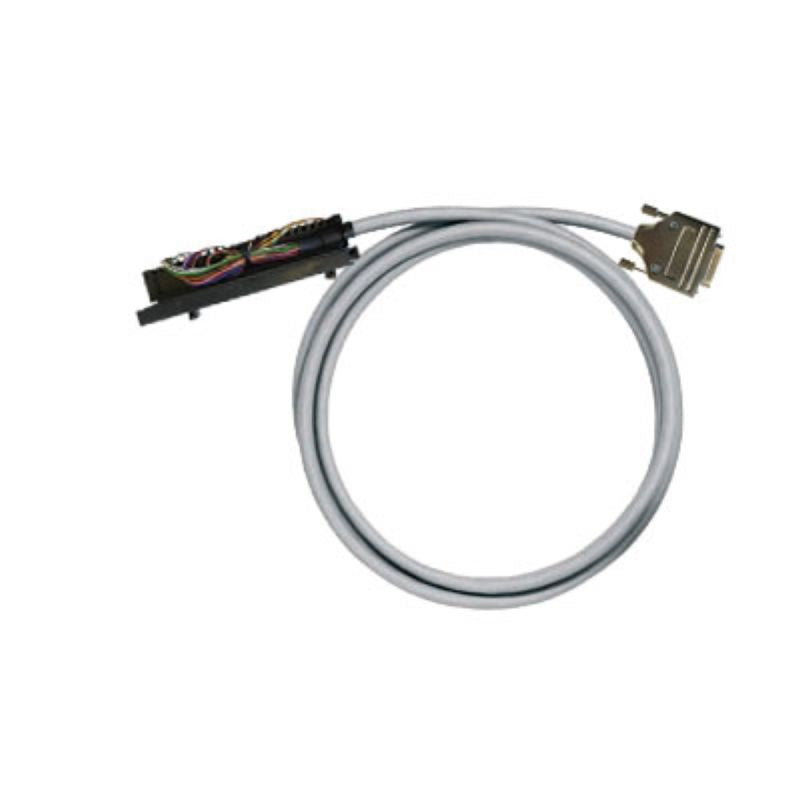

7789224025 - 2.5m PVC Pre-assembled Cable for Analogue Signals

SKU: SKU: 7789224025 Download PDF

Select a Variant:

7789224025 - 2.5m PVC Pre-assembled Cable for Analogue Signals

SET THE QTY:

Now $144.48 Web pricing policy

~~BEFORE $0.00~~ Now $144.48 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the convenience of the PAC-S300-SD15-V1-2M5 pre-assembled cable, an essential tool for general applications With a length of 25 meters and a wire cross-section of 025 mm², this cable is perfect for transmitting analogue signals effectively Built from durable PVC material, it not only complies with environmental standards but also ensures long-lasting performance.

Features and Benefits:

•Compliant with RoHS and includes a RoHS exemption.

•Compatible with Siemens S7300 6ES7921-3AH00-1AA0 20P connector.

•15-pole SUB-D FEMALE interface.

Specifications:

Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
Outer diameter	8.7 ± 1 mm
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
High voltage test	1 KV/1s
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max.	3 A
General ordering data	{'Order No.': '7789224025', 'GTIN (EAN)': '8430243964951', 'Qty.': '1 items'}
SCIP	4bbf2c0d-0764-4fc8-bb24-9351c28c190d
ETIM classification	['EC000237', 'EC000237', 'EC000237', 'EC000237', 'EC000237', '27-24-22-20', '27-24-22-20', '27-24-22-20', '27-24-22-20', '27-24-22-20', '27-24-22-20']
REACH SVHC	Lead 7439-92-1
