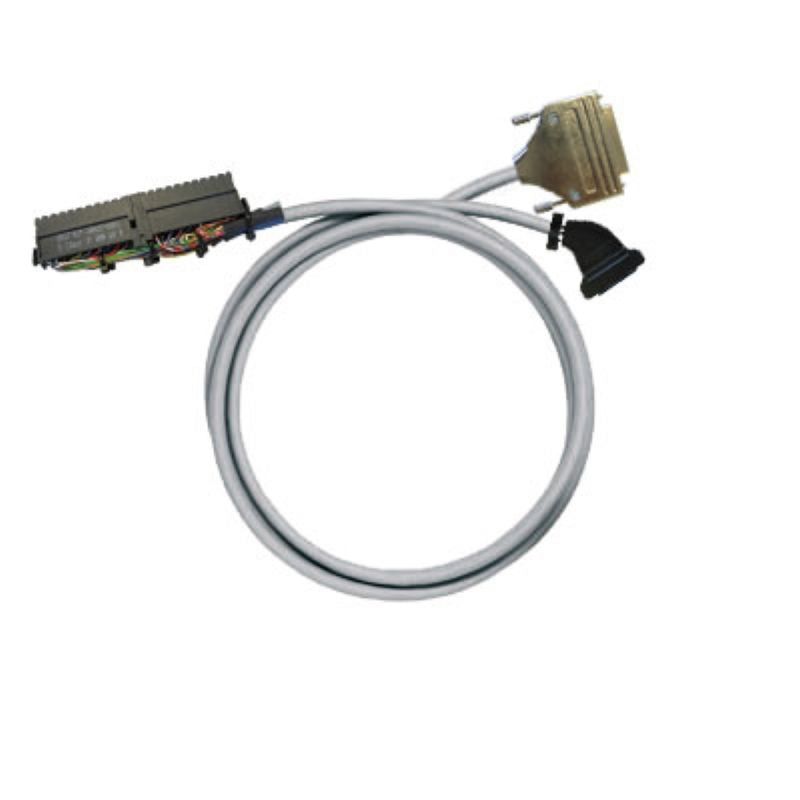

7789223040 - 4m Pre-assembled Cable with SIEMENS & SUB-D Connectors

Description:

Introducing the PAC-S300-HESD-V0-4M, a reliable pre-assembled cable ideal for analog signal applications Measuring 4 meters in length, this cable incorporates high-quality LiYY and LiYCY conductors with a cross-section of 025 mm² On one end, you'll find a SIEMENS S7300 connector, while the opposite end features a FLAT CABLE CONNECTOR HE10 alongside a SUB-D FEMALE connector This product adheres to RoHS standards and operates effectively within a temperature range of -10 to 60 degrees Celsius, making it versatile for various environments.

Features and Benefits:

•Compliant with RoHS exemption.

•Suitable for analogue signals.

•Outer diameter of the cable is 8.6 ± 1 mm and 10.15 ± 1 mm.

•Capacity of wire/shield and wire/wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Maximum permissible current strength per path of 1 A.

•Rated voltage is up to 60 Vdc and 25 Vac.

•Total maximum current is 3 A.

Specifications:
