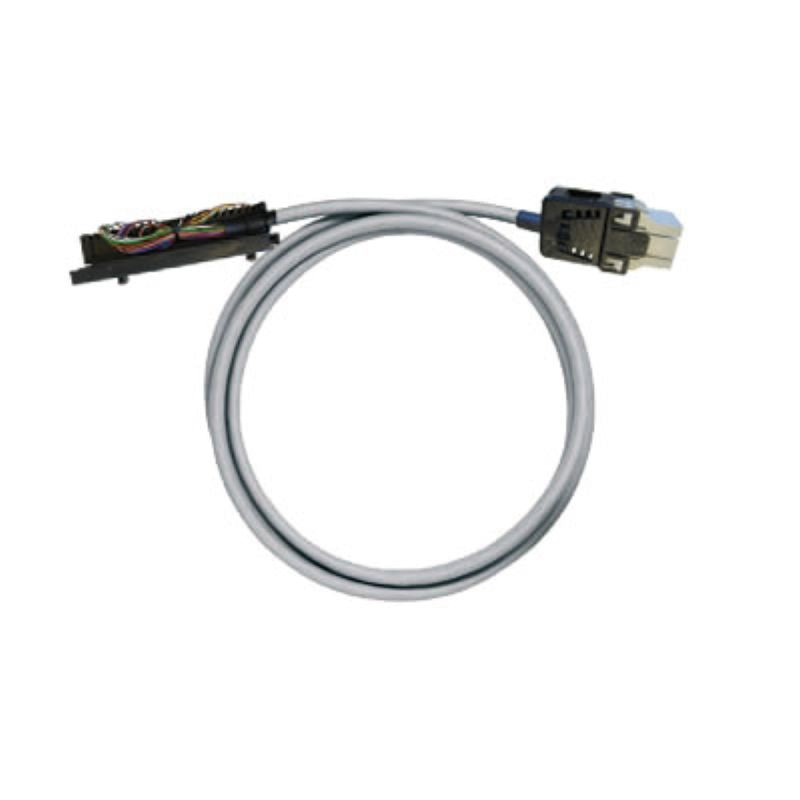

7789220040 - 4m PVC Pre-assembled Cable with 24-Pole Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S300-RV24-V6-4M pre-assembled cable, crafted for optimal performance with digital signals This cable features a cross-section of 025 mm² and boasts a substantial length of 4 meters Constructed from durable PVC, it comes equipped with a 24-pole connector compatible with SIEMENS S7300 systems on one end, and a 24-pin male interface connector by WEIDMUELLER on the other Adhering to RoHS standards, this cable is designed to operate effectively in a variety of environmental conditions, making it a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant with exemptions.

•Suitable for digital signals.

•Net weight of 587 g.

•Operating temperature range from -10 to 50 °C.

•Storage temperature range from -10 to 60 °C.

•Outer diameter of 9.2 ± 1 mm.

•Capacitance of 300 pF/m for wire/shield and wire/wires.

•High voltage tested up to 1 KV for 1 second.

•Permissible current strength per path is maximum 1 A.

•Rated for up to 250 Vdc and 250 Vac.

•Resistance of ≤ 80 mΩ/m.

•Total maximum current of 3 A.

Specifications:
