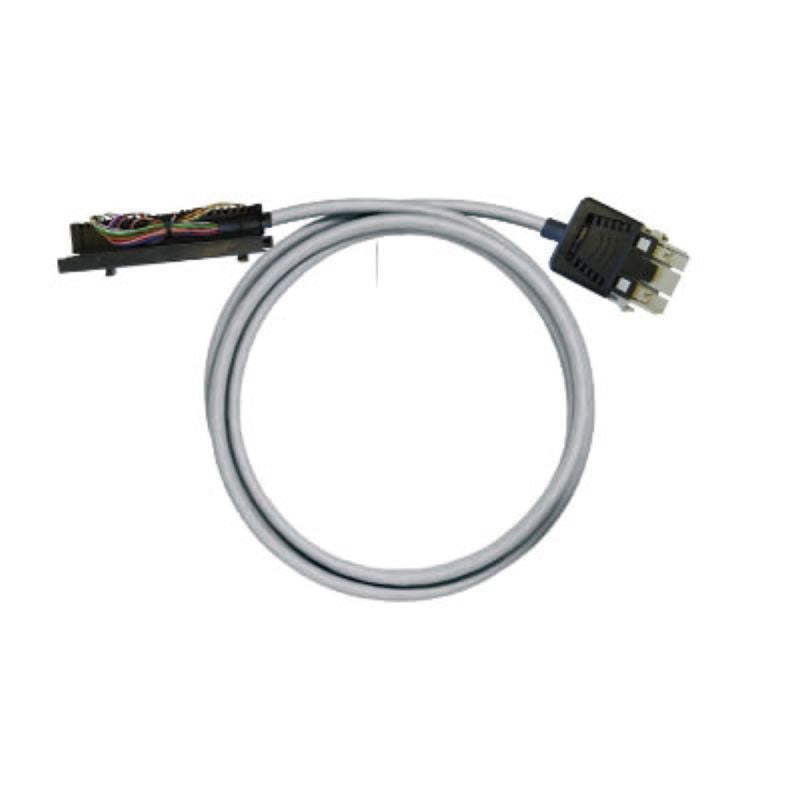

7789212060 - 6m PVC Pre-Assembled Digital Signal Cable with Connectors

Description:

Introducing a versatile PAC-type pre-assembled cable, expertly crafted for digital signal transmission This cable measures 6 meters in length and boasts a wire cross-section of 025 mm² Made from durable PVC, it features a Siemens S7300 connector on one end and a Weidmüller RSV 24P male interface connector on the opposite side, ensuring a secure connection with a minimum of 24 poles The cable's outer diameter is approximately 9.

2 mm, with a tolerance of ± 1 mm, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Compliant with RoHS exemption.

•Lead contained within the product is classified under REACH SVHC.

•Capacities per meter for wire and shield are both 300 pF/m.

•Maximum permissible current strength per path is 1 A.

•Rated voltage for the cable is up to 250 Vdc and 250 Vac.

•Achieves a maximum resistance of 80 mΩ/m.

•Used for digital signals.
