7789210025 - 2.5m Pre-assembled Cable with 24-pole Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

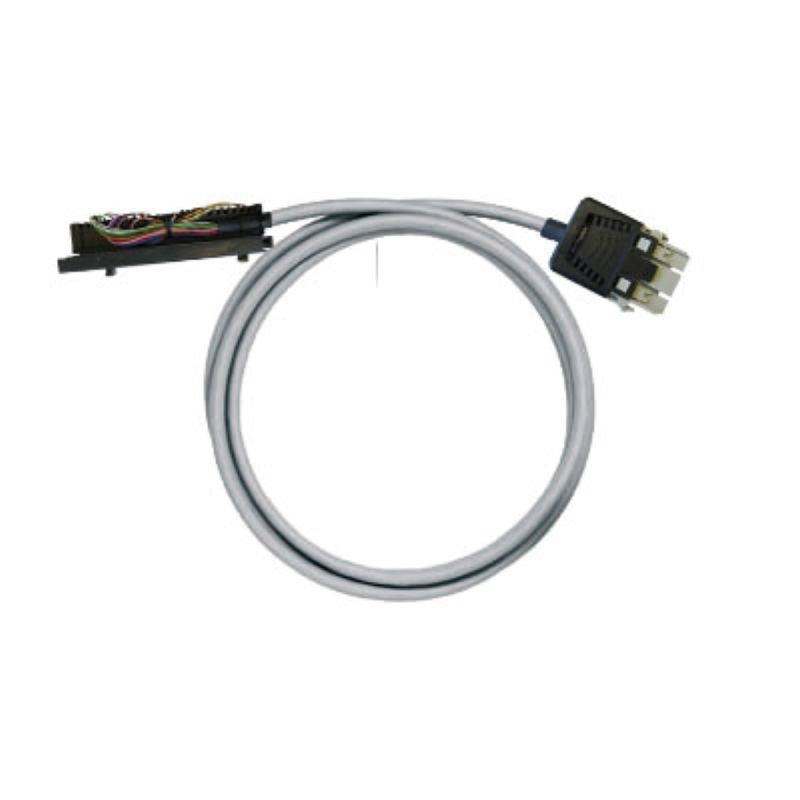

Introducing the pre-assembled PAC-S300-RV24-V1-2M5 cable, expertly crafted for reliable digital signal transmission Measuring 25 meters in length and featuring a 025 mm² wire cross-section, this cable is built with a durable PVC material On one end, it’s equipped with a Siemens S7300 24-pole connector, while the opposite end hosts a Weidmüller 24-pole male interface connector Designed to perform within a temperature range of -10 to 50 °C, it adheres to RoHS standards, with specific exemptions.

This cable is a practical choice for your connectivity needs, ensuring robust performance in various applications.

Features and Benefits:

•Environmental Product Compliance with RoHS.

•Net weight of 386 g.

•Outer diameter of 9.2 ± 1 mm.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage of up to ≤ 250 Vdc and ≤ 250 Vac.

•Suitable for digital signals.

Specifications:
