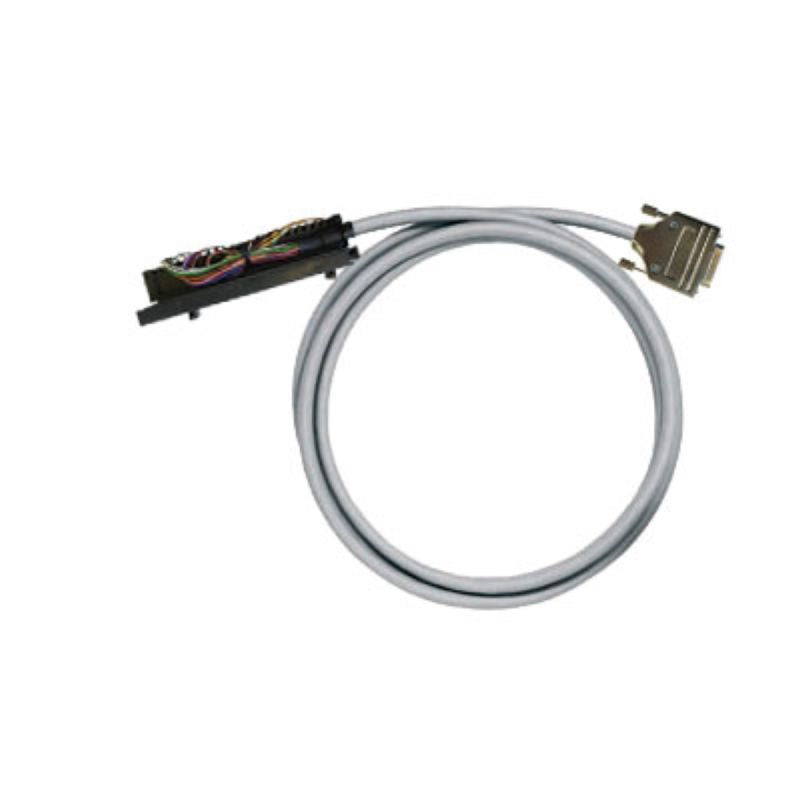

7789193050 - 5m LiYCY Cable for Efficient Analogue Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S300-SD15-V0-5M, a pre-assembled cable from the PAC series designed for seamless analogue signal transmission With a wire type of LiYCY and a cross-sectional area of 025 mm², this 5-meter cable is perfect for a variety of practical uses, providing reliability and efficiency in your connections.

Features and Benefits:

•Outer diameter of 8.7 ± 1 mm.

•Compatible with SIEMENS S7300 6ES7921-3AH00-1AA0 20P connector.

•15-pole interface connector.

•Electrical capacity of 300 pF/m for wire/shield and wire/wires.

•High voltage test rating up to 1 KV for 1 second.

•Maximum permissible current strength of 1 A per path.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance not exceeding 80 mΩ/m.

•Total maximum current of 3 A.

•Basic material made of PVC.

•Suitable for applications involving analogue signals.
