7789192010 - 1m PVC Digital Cable, 8.6mm for SIEMENS & FLAT Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

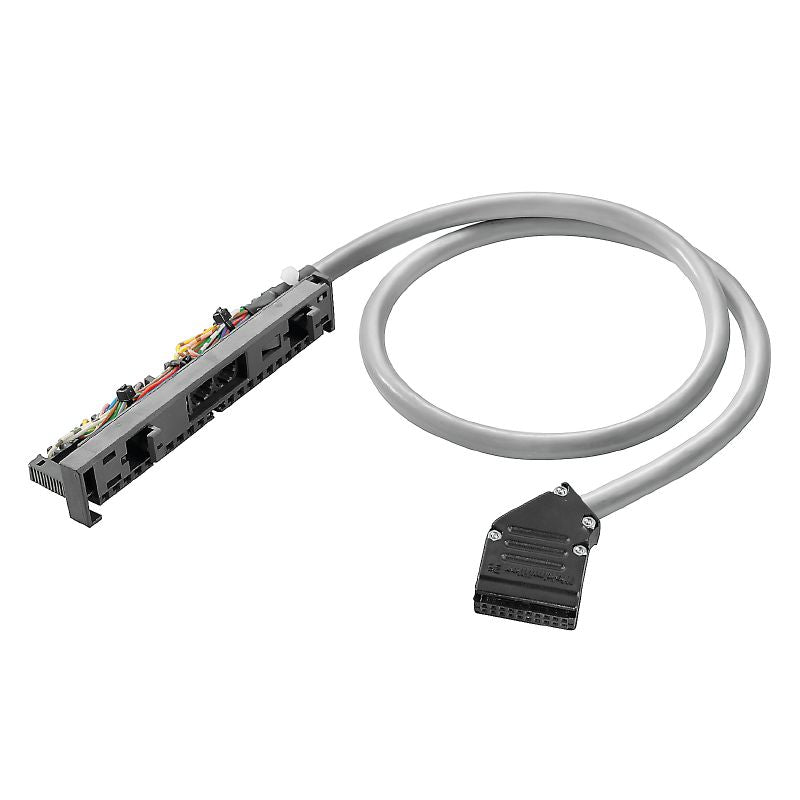

Introducing the PAC-S300-HE20-V0-1M pre-assembled cable, expertly crafted for digital signal transmission With an outer diameter of 86 ± 1 mm, this robust cable is made from durable PVC material It features a versatile setup with a SIEMENS S7300 connector on one end and a FLAT CABLE CONNECTOR HE10 on the other, providing a total length of 1 meter Equipped with a 20-pole interface, this cable is ideal for various digital signal applications, ensuring reliable performance wherever you need it.

Features and Benefits:

•Compliant with RoHS and has a compliant exemption.

•Excellent capacity with wire/shield and wire/wires at 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Permitted maximum current strength of 1 A per path, and a total maximum current of 3 A.

•Low resistance at ≤ 80 mΩ/m.

Specifications:
