7789156030 - 3m Pre-assembled RoHS Cable with 25P & 20P Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

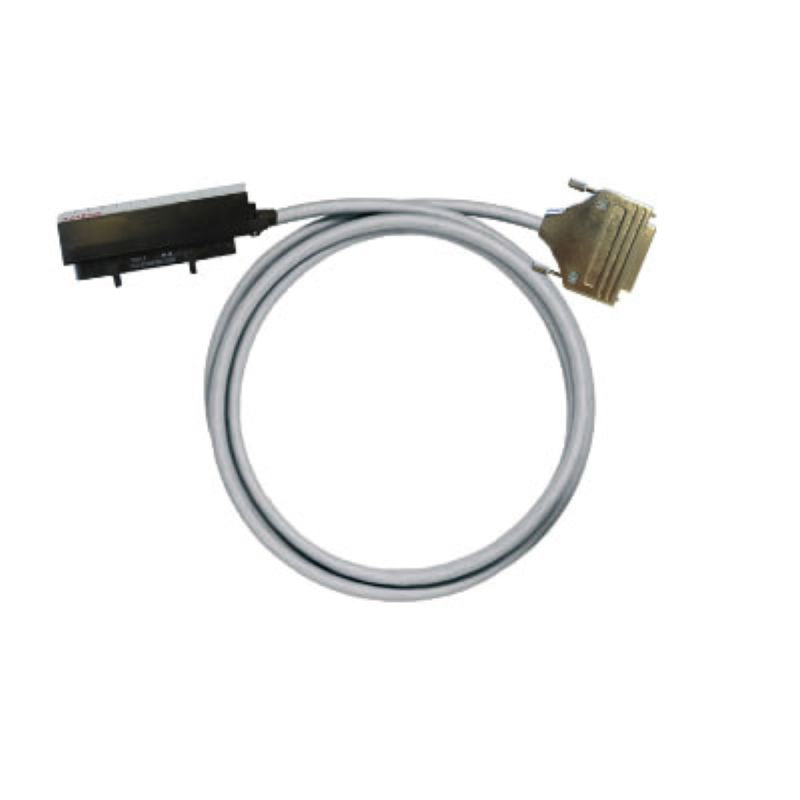

Presenting the pre-assembled PAC-CTLX-SD25-V4-3M cable, engineered for analog signal transmission This cable, which complies with RoHS standards and meets exemption 6c, features a wire cross-section of 025 mm² With a generous length of 3 meters, it is equipped with a ROCKWELL CONTROL LOGIX 1756-TBNH 20P connector on one end and a SUB-D FEMALE 25P connector on the other The outer diameter of the cable measures 10.

15 ± 1 mm, combining functionality with precision engineering for reliable performance.

Features and Benefits:

•Suitable for analog signals.

•Cable LiYCY construction.

•Maximum permissible current strength per path is 1 A.

•Rated for voltage levels up to 60 Vdc and 25 Vac.

•Resistance is up to 80 mΩ/m.

Specifications:
