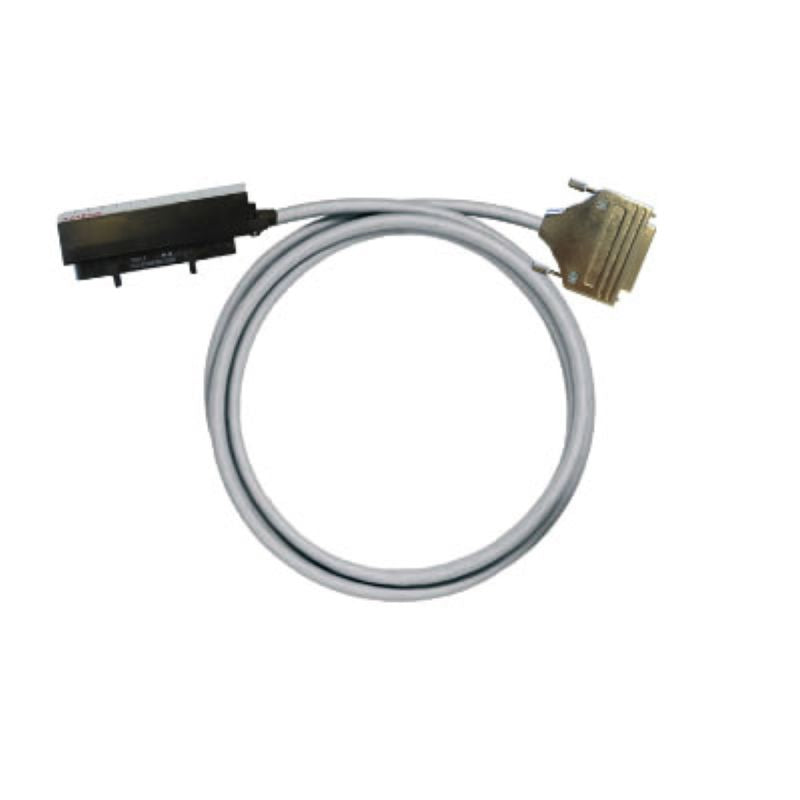

7789156020 - 2m PVC Pre-assembled Cable with SUB-D Female 25P Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-CTLX-SD25-V4-2M, a pre-assembled cable engineered for analogue signal transmission Measuring 2 meters in length, this cable features a wire cross-section of 025 mm², ensuring efficient performance It is equipped with connectors compatible with the ROCKWELL CONTROL LOGIX 1756-TBNH 20P and includes a SUB-D FEMALE 25P interface With an outer diameter of 1015 ± 1 mm, this cable meets stringent electrical standards, boasting a high voltage test rating of 1 KV for a duration of 1 second.

It supports a maximum current of 3 A, with each path allowing up to 1 A, alongside a rated voltage capability of 60 Vdc and 25 Vac, making it a reliable choice for various applications.

Features and Benefits:

•Compliant with restrictions including RoHS and REACH SVHC.

•Capacity wire to shield and wire to wires each at 300 pF/m.

•Low resistance of ≤ 80 mΩ/m.

•Suitable for analogue signals.

Specifications:
