7789108030 - 3m LiYY Cable, 0.25 mm², Ferrule Connector, Digital Use

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

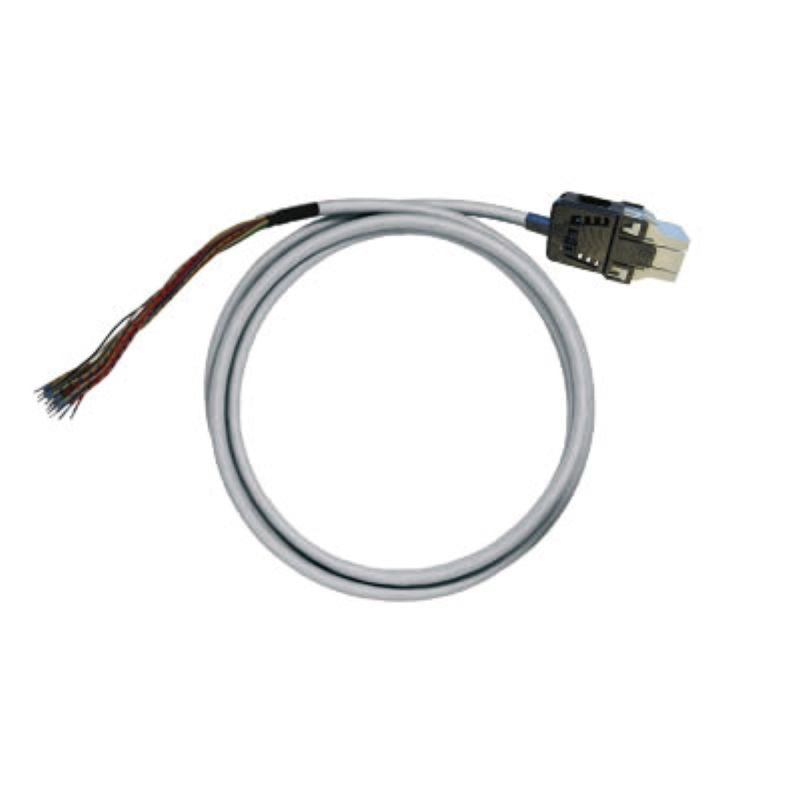

Introducing the PAC pre-assembled cable, designed with a robust LiYY structure and a cross-sectional area of 025 mm² This 3-meter cable is optimized for transmitting digital signals seamlessly It features a ferrule-type connector on the PLC side, also measuring 025 mm², and is equipped with a WEIDMUELLER RSV 12P MALE interface connector With a minimum of 20 poles and an outer diameter of 86 ± 1 mm, this cable offers reliable connectivity for your needs.

Features and Benefits:

•Compliant with RoHS standards.

•Operating temperature range of -10 to 50 °C.

•Storage temperature range of -10 to 60 °C.

•Can handle a maximum total current of 3 A.

•Rated for voltage up to 250 Vdc and 250 Vac.

•Low resistance of ≤ 80 mΩ/m.

•Suitable for digital signals.

Specifications:
