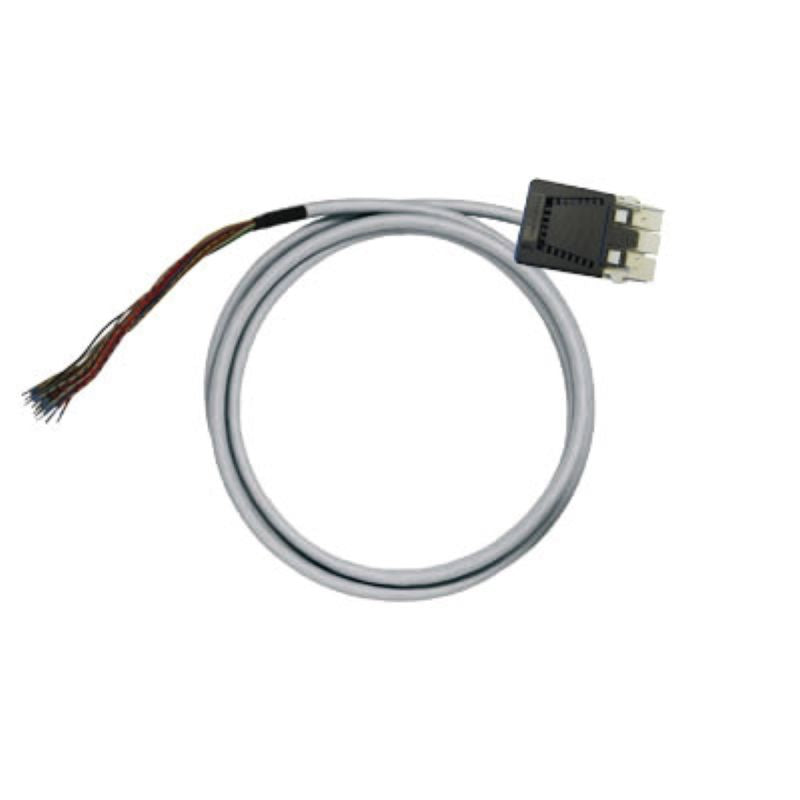

7789106025 - 2.5m LiYY Cable with Ferrules & WEIDMUELLER Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-UNIV-RV36-F-2M5 pre-assembled cable, expertly crafted to meet RoHS standards This versatile cable is made with LiYY type material and has a wire gauge of 025 mm² Stretching 25 meters in length, it features H025/10 ferrule connectors on one end, designed to accommodate 025 mm² wires, while the other end is equipped with a WEIDMUELLER RSV 36P male interface connector This cable is optimal for transmitting digital signals, ensuring reliable performance for your connectivity needs.

Features and Benefits:

•Net weight of 489.5 g.

•Storage temperature range from -10 to 60 °C.

•Operating temperature range from -10 to 50 °C.

•Outer diameter of 11.2 ± 1 mm.

•Rated voltage of ≤ 250 Vdc and ≤ 250 Vac.

•Maximum permissible current strength of 1 A per path.

•Total current a maximum of 3 A.

•Capacity of wire to shield is 300 pF/m.

•Capacity of wire to wires is 300 pF/m.

•High voltage test capability of 1 KV for 1s.

•Resistance ≤ 80 mΩ/m.

•Digital signal transmission.
