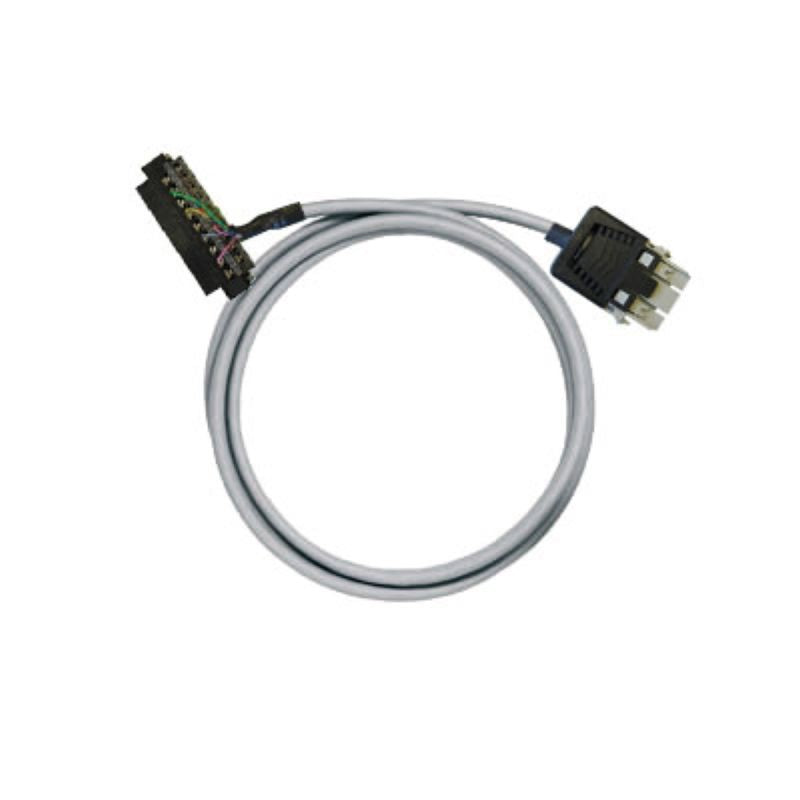

7789024010 - 1m PVC Cable with ROCKWELL & WEIDMUELLER Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-CMLX-RV24-V2-1M pre-assembled cable, expertly crafted for optimal performance With a 025 mm² wire cross-section and a generous length of 1 meter, this cable is designed specifically for handling digital signals It boasts a connector on one end compatible with the ROCKWELL COMPACT LOGIX 1769-RTBN 18P, while the opposite end features a WEIDMUELLER RSV 24P MALE connector The outer diameter measures around 9.

2 mm, ensuring versatility and ease of use in various applications.

Features and Benefits:

•Conforms to RoHS compliance and meets exemption criteria.

•Capable of withstanding high voltage tests up to 1 KV for 1 second.

•Supports a permissible current strength of up to 1 A per path.

•Rated for a voltage of up to 250 Vdc and 250 Vac.

•Low resistance of ≤ 80 mΩ/m.

•Suitable for digital signal transmission.

Specifications:
