6720000787 - IPC-620 12-Point Card Edge Connection Module, 61mm Depth

Description:

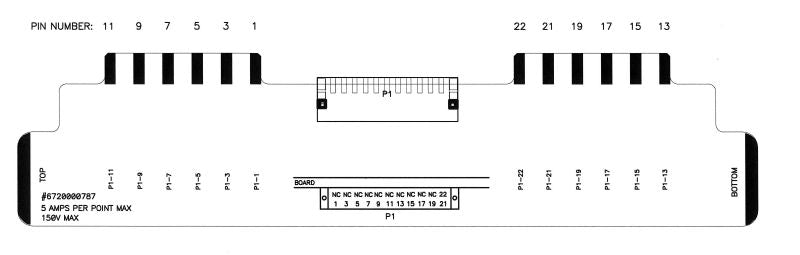

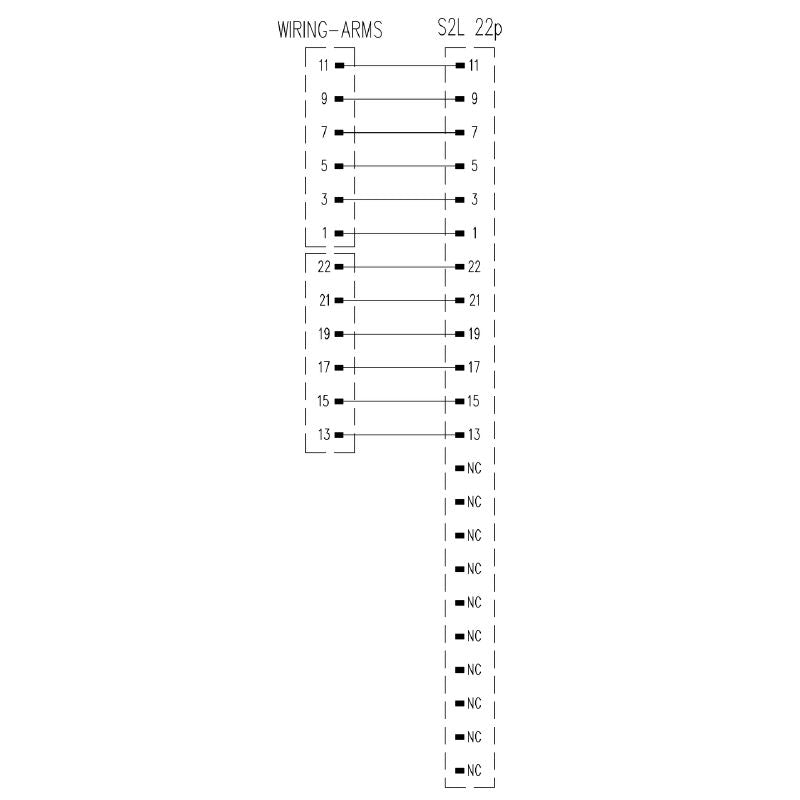

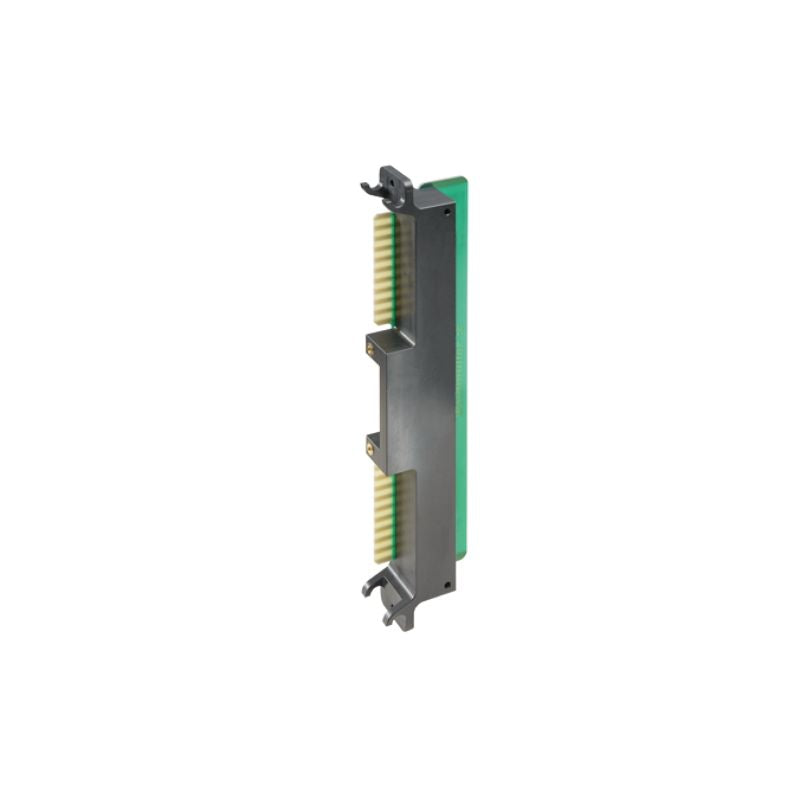

Introducing the RS PLC IPC-620 12-POINTS, a certified product adhering to RoHS guidelines, perfect for a wide range of applications This unit has a compact design with dimensions of 61 mm in depth, 266 mm in height, and 29 mm in width, weighing in at 8,001528 grams Engineered to perform effectively in temperature ranges from 0°C to 50°C, it provides reliable operation On the field side, you'll find a card edge connection, while the control side features a 3.

5 pitch S2L header connection with a total of 12 poles Rated for an operating voltage of 150 V and capable of handling a maximum current of 5 A per channel, this product also complies with insulation coordination standards (EN50178) and is designed for pollution severity level 2.

Features and Benefits:

•RoHS compliant.

•Storage temperature between 0 and 50 °C.

•Operating temperature between 0 and 50 °C.

•12-pole connection on control side.

•Card edge connection on field side.

•Operating voltage of 150 V.

•Maximum current of 5 A per channel.

Specifications:
