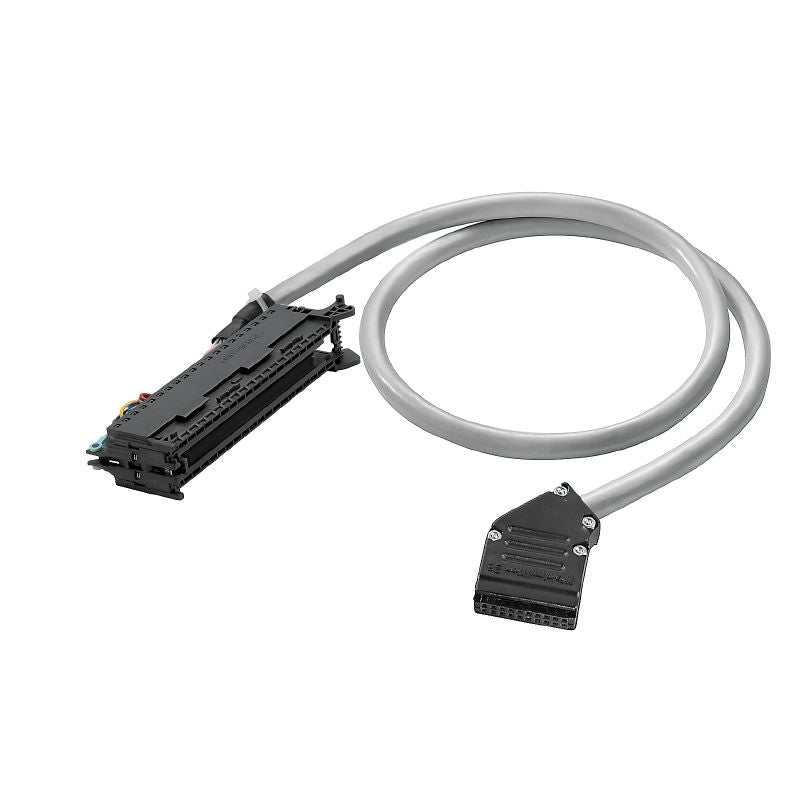

2605170010 - 1m PVC Pre-assembled Cable with SIEMENS Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S1500-HE20-V8-1M, a premium pre-assembled cable crafted primarily from durable PVC material This 1-meter long cable weighs only 158 grams, making it lightweight and easy to handle It operates efficiently in a temperature range of -11 to 50 °C and can be securely stored at temperatures from -10 to 60 °C Equipped with SIEMENS S71500 6ES7592-1BM00-0XA0 connectors on one end and a FLAT CABLE CONNECTOR HE10 on the opposite side, this cable is designed for robust connectivity and reliable performance.

Features and Benefits:

•Compliant with RoHS regulations.

•Constructed with a basic material of PVC.

•Capable of handling a maximum current strength of 1 A.

•Total maximum current can reach up to 3 A.

•Voltage rating of ≤ 60 Vdc and ≤ 25 Vac.

•Wire cross-section measures 0.25 mm².

•Outer diameter of the cable is 8.6 ± 1 mm.

Specifications:
