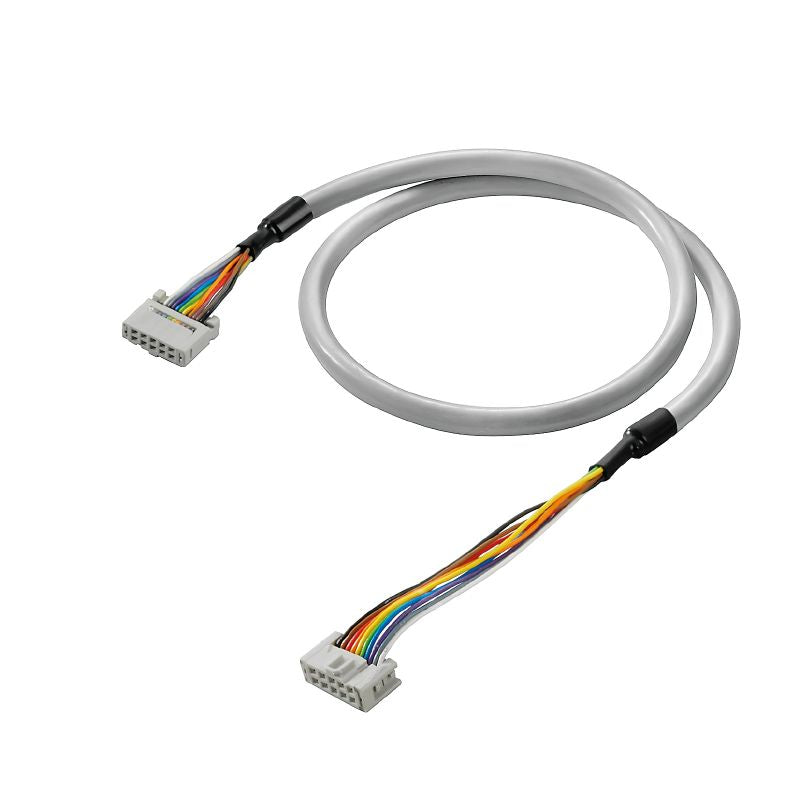

2425730020 - 2m 20-Pole Flat Cable for Digital Signals

SKU: SKU: 2425730020 Download PDF

Select a Variant:

2425730020 - 2m 20-Pole Flat Cable for Digital Signals

SET THE QTY:

Now $78.59 Web pricing policy

~~BEFORE $0.00~~ Now $78.59 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience superior connectivity with the PAC-HE20-HE20-HF-2M digital signal cable, which spans 2 meters in length Equipped with a 20-pole flat connector on each end, this cable supports a maximum voltage of 60 V DC and 25 V AC, alongside a current capacity of 1 A per path, culminating in an overall total current capacity of 3 A This product is RoHS compliant and operates effectively within a temperature range of -10 to 50 °C, making it reliable for various applications.

Features and Benefits:

•Compliant with RoHS regulations.

•Capable of transmitting digital signals.

•Flat cable connector type HE10 with 20 poles.

•Low resistance rating of ≤ 150 mΩ/m.

Specifications:

Cable Length	2 m
Wire Cross-section	0.14 mm²
Operating Voltage	≤ 60 V DC ≤ 25 V AC
Permissible Current Strength per Path	1 A
Total Current	3 A
Storage Temperature	-10...60 °C
Operating Temperature	-10...50 °C
Capacity Wire / Shield	300 pF/m
Capacity Wire / Wires	300 pF/m
Resistance	≤ 150 mΩ/m
ETIM Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237'}
ECLASS Classifications	{'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
