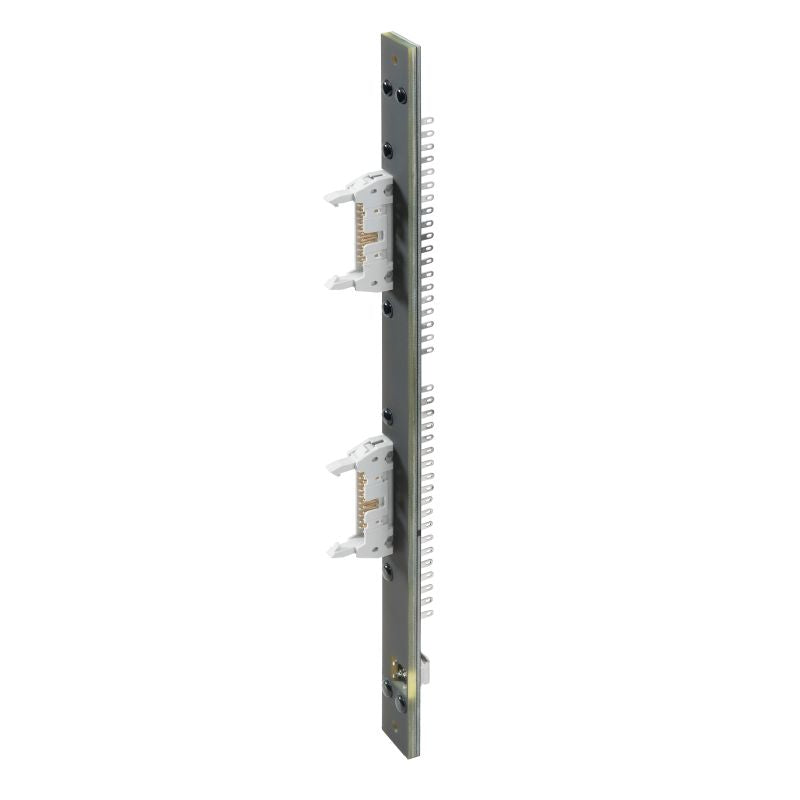

1986050000 - RoHS Compliant Device, 283mm Height, Operating Temp -25°C to 50°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FAD S5135 2XHE20 32IO R, a robust device adhering to RoHS compliance standards With dimensions of 36 mm in depth, 283 mm in height, and 20 mm in width (equivalent to 1417 inches, 11142 inches, and 0787 inches respectively), this product is thoughtfully designed to meet various needs Weighing in at 65 grams, it is lightweight and portable This device offers versatility with its operational temperature range spanning from -25°C to 50°C and can be stored in conditions from -40°C to 60°C.

It also boasts certification for important environmental regulations, ensuring it meets the required compliance standards for responsible product use.

Features and Benefits:

•Two connectors compliant with IEC60603-13/DIN41651 20 p.

•Operating voltage of 30 V AC / 60 V DC.

•Maximum current per channel is 1 A.

•Maximum current per byte is 2 A.

•Total operating current capacity is 6 A.

•Insulation coordination in accordance with DIN EN 50178.

•Rated insulation voltage below 50 V AC.

•Surge voltage category is III.

•Pollution severity level is 2.

•Insulation test voltage AC at 0.35 kV.

Specifications:
