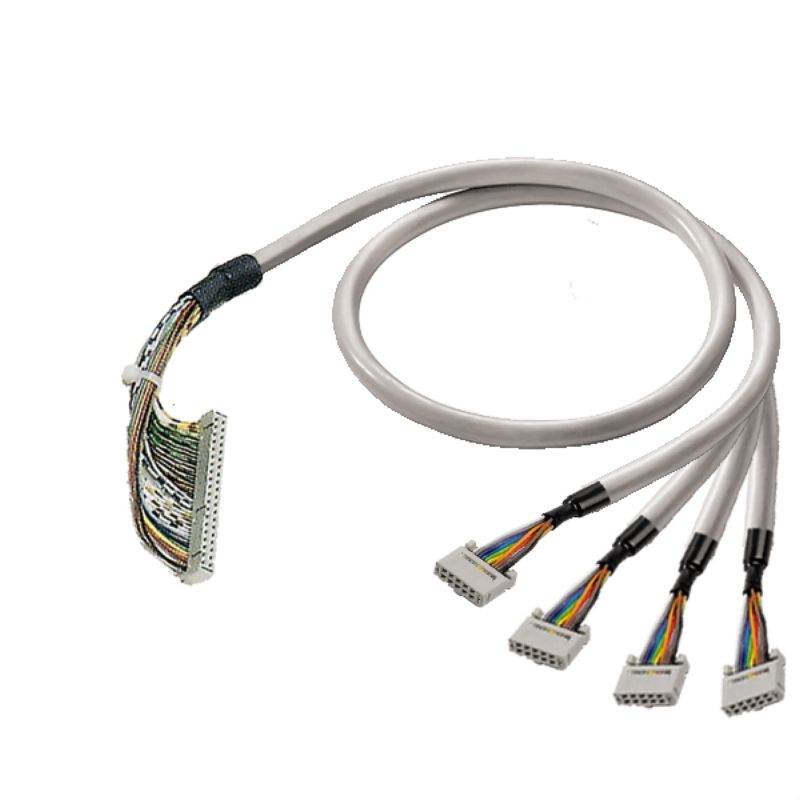

1512220030 - 3m PVC Pre-assembled Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the pre-assembled PAC-YOKO-4X10-V2 cable, expertly crafted to meet your digital signal transmission needs This 3-meter long cable is constructed from high-quality PVC, offering durability and reliability It boasts an outer diameter of 54 ± 1 mm and is equipped with a 10-pole HE10 50 P connector on one end and a 4xHE10 10P interface connector on the other This cable adheres to RoHS standards, ensuring it meets environmental safety regulations.

With an operating temperature range of -10 to 50 degrees Celsius and a storage range from -10 to 60 degrees Celsius, it is built to perform in various conditions, making it an excellent choice for your connectivity needs.

Features and Benefits:

•Cable type is LiYY.

•Wire cross-section measures 0.14 mm².

•Capacity wire per meter is 300 pF/m.

•Rated voltage of ≤ 60 V DC and ≤ 25 V AC.

•High voltage test capability of 1 KV for 1 second.

•Maximum permissible current strength is 1 A per path.

•Total maximum current is 3 A.

•Number of poles is a minimum of 10.

•Compliant with environmental standards.

•Suitable for digital signal transmission.

Specifications:
