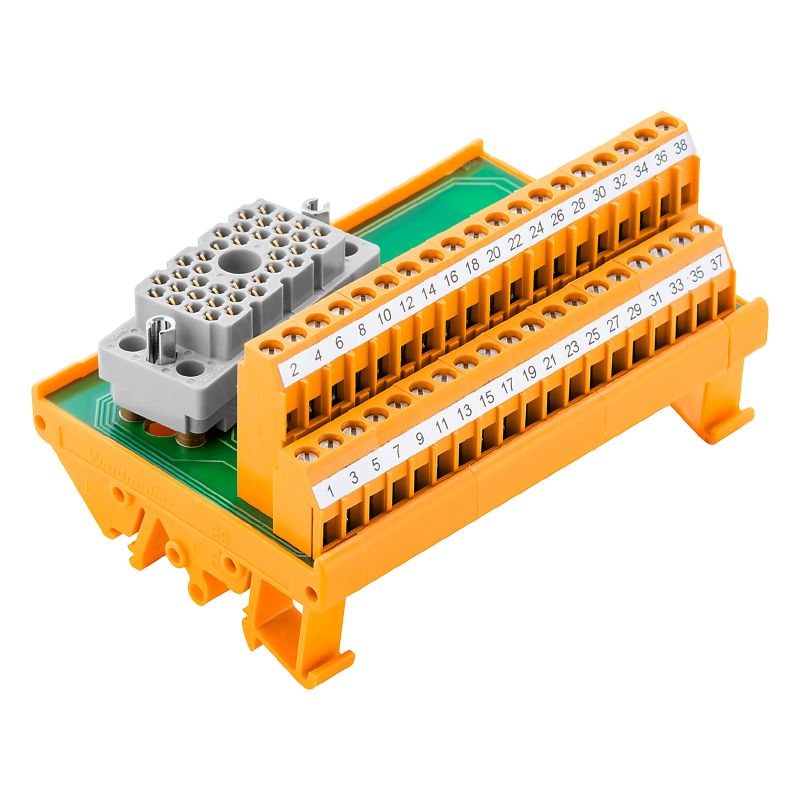

1480770000 - 5.08mm Pitch ELCO Plug-In Connector, 60mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

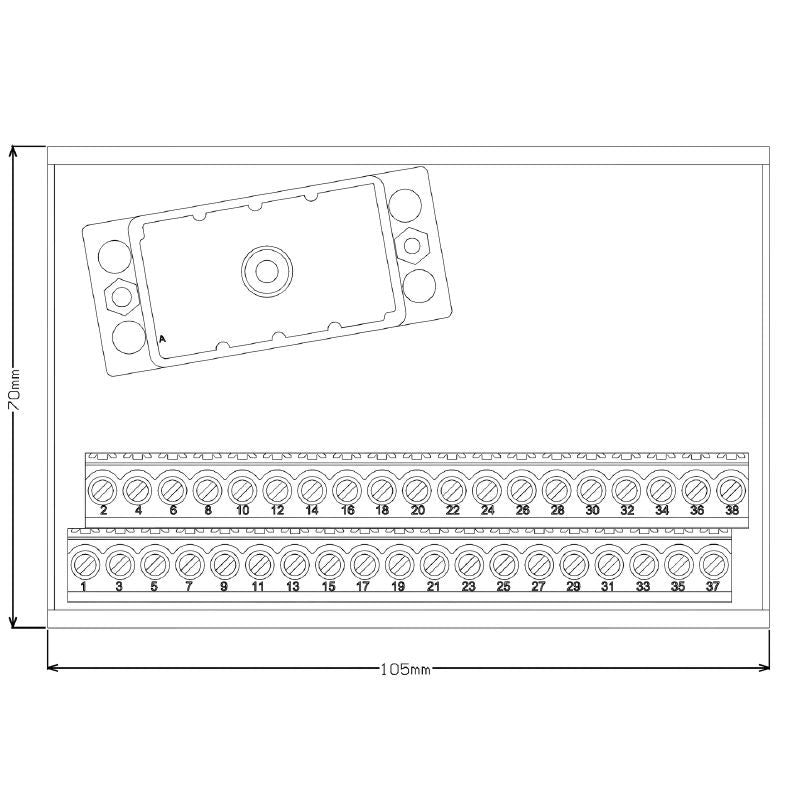

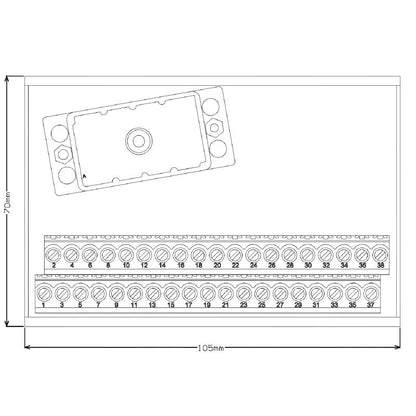

Introducing the RS ELCOF 38/38LM S, an essential interface component featuring a plug-in connector with a 508mm pitch This connector is RoHS compliant and includes certification number E141197 for quality assurance With dimensions of 60mm deep, 70mm tall, and 105mm wide (equivalent to 2362 inches, 2756 inches, and 4134 inches), it weighs approximately 17336 grams, making it a lightweight and compact choice for your connectivity needs.

Engineered to function within a temperature spectrum of -25 to 50 °C, it can be stored at even lower temperatures, down to -40 °C, and up to 60 °C The connector boasts a rated current of 1A and supports voltage levels of 150V AC / 200V DC Additionally, it accommodates a wire clamping range from 05mm² to 6mm², ensuring reliable connections for various applications.

Features and Benefits:

•RoHS compliant with an exemption.

•Rated at 150V AC / 200V DC.

•Short-circuit protection through a clamping yoke connection.

•Available for various wire cross-sections.

•Connects effectively in field and control sides.

Specifications:
