1480740000 - Robust ELCO Plug-in Connector Interface, 5.08mm Pitch

1480740000 - Robust ELCO Plug-in Connector Interface, 5.08mm Pitch

SKU: 1480740000   Download PDF

Select a Variant:
  • 1480740000 - Robust ELCO Plug-in Connector Interface, 5.08mm Pitch
Qty:
Now $146.71   Web pricing policy
BEFORE   $0.00 Now $146.71 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

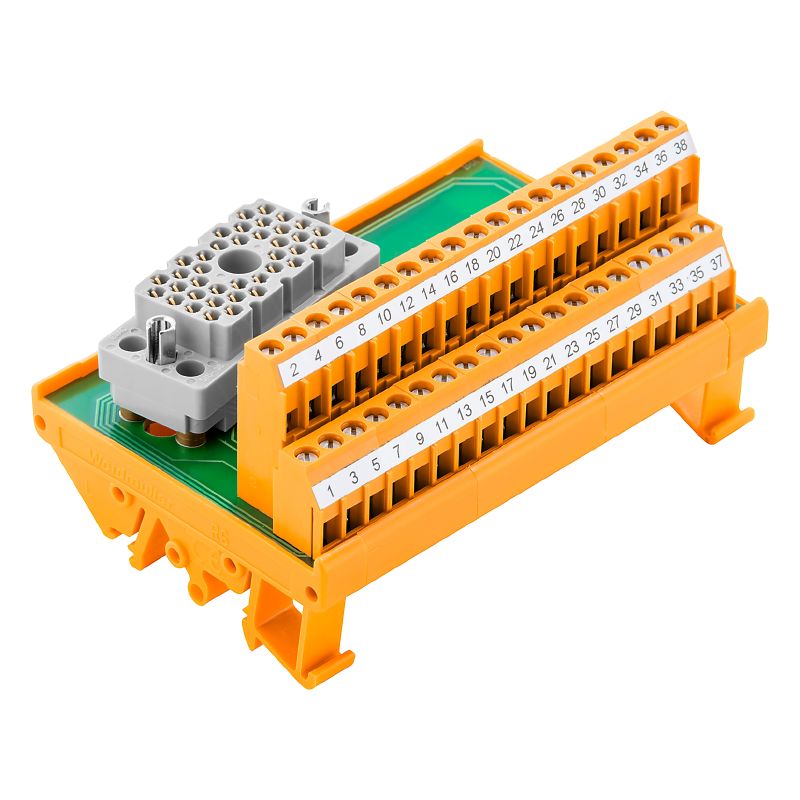

Introducing the RS ELCOF 20/20RM S, a versatile interface product featuring a dependable ELCO plug-in connector with a 508mm pitch This item boasts a sturdy design suitable for a wide range of applications With its compliance to RoHS standards, you can trust in its ecological safety as well The product is also classified under UL File Number E141197, ensuring reliability and quality in performance.

Features and Benefits:

    •RoHS compliant with exemption.

    •No earthing required.

    •Rated current of 1.5 A per connection.

    •Total operating current of 30 A.

    •Compact design allows for a space-saving installation.

Specifications:

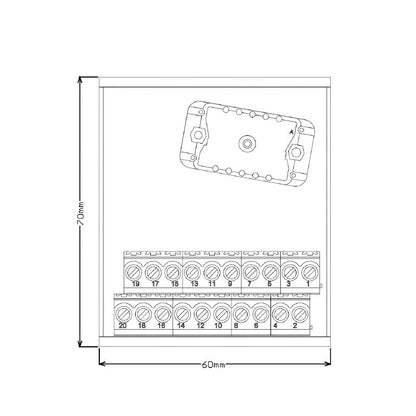

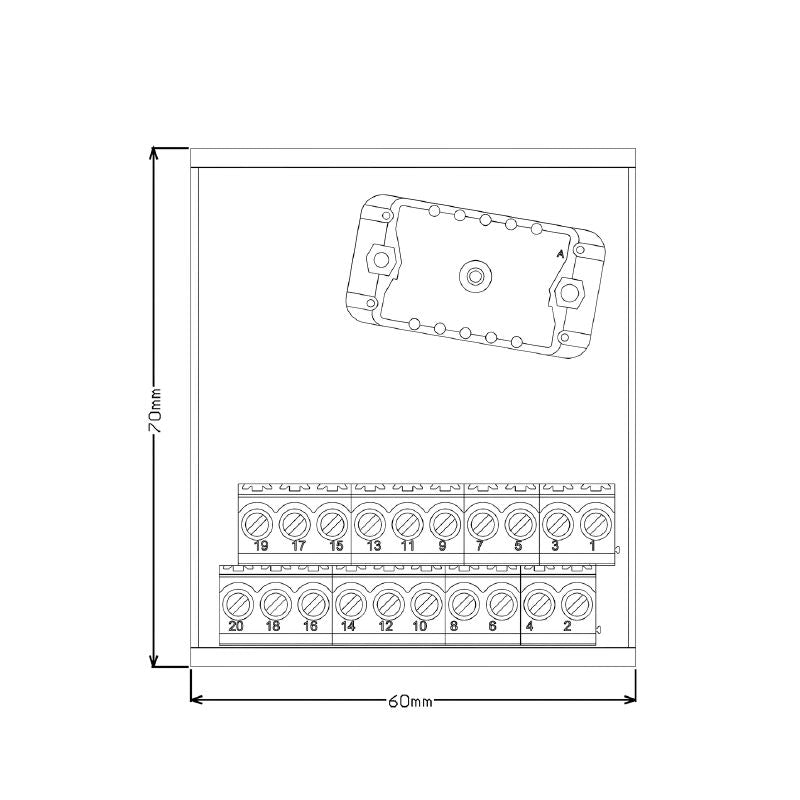

 Depth 60 mm
 Height 70 mm
 Width 60 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage 150 V AC / 200 V DC
 Connection (field side) LP2N 5.08mm
 Connection on control side ELCO plug-in connector
 Contact material (control side) Phosphor bronze alloy
 Number of poles (control side) 20-pole female
 Rated current I 1.5 A
 Rated insulation voltage <150 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 2.5 kV
 Connection field Clamping yoke connection
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
