1464800000 - RSM-8H 24V Screw Connection Device, 130mm, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

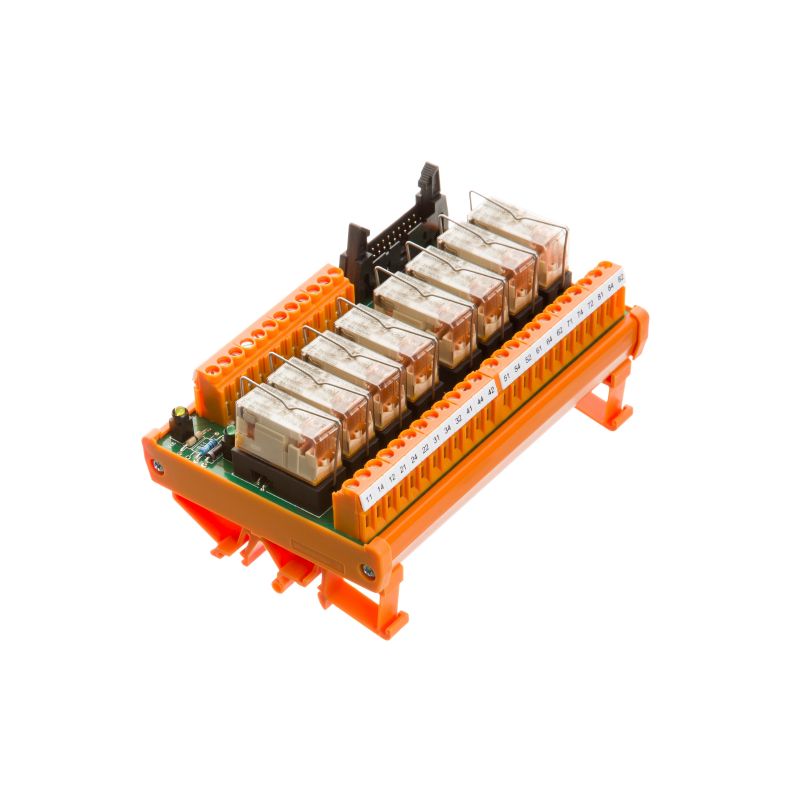

Introducing the RSM-8H 24V-1CO S, an advanced device featuring a reliable screw connection interface Certified with UL Certification No E141197, this unit adheres to RoHS guidelines, ensuring safety and environmental compliance With dimensions of 130 mm wide, 62 mm deep, and 87 mm tall, it weighs just 252 g, making it compact and easy to handle This device operates efficiently in temperatures ranging from -25 to 50 °C and can be safely stored in environments between -40 and 60 °C.

Its components meet RoHS requirements, including several exemptions, and it is recognized under REACH regulations.

Features and Benefits:

•LED indicators for relay and supply status.

•No fuse per relay.

•Screw connection for installation ease.

•20-pole connection on the control side.

•Potential-free contact relay type.

•Mechanical service life rated for 3 x 10^7 switching cycles.

Specifications:
