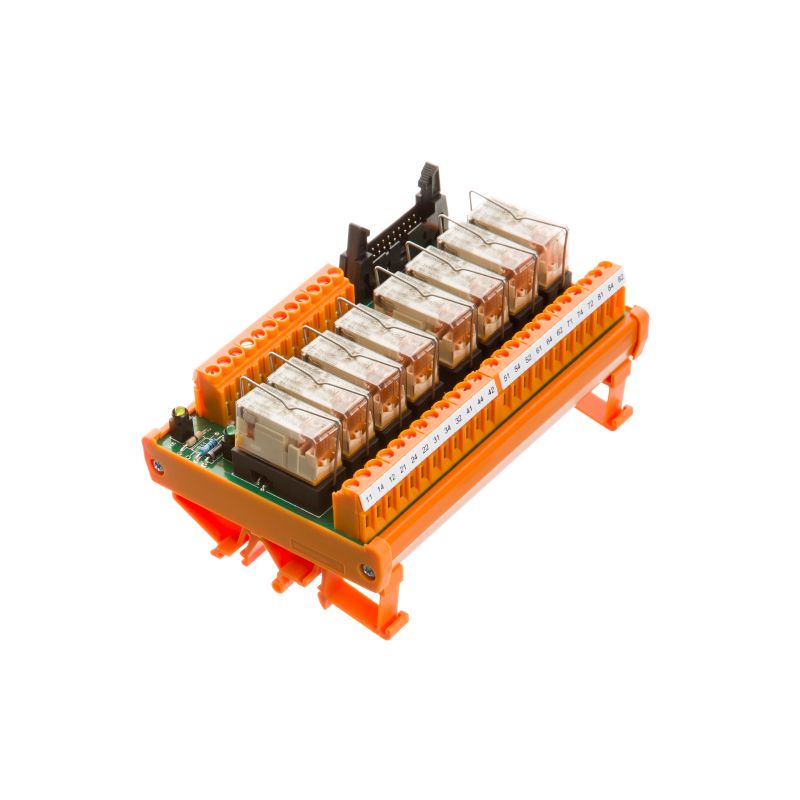

1464790000 - RSM-8H 24V Interface Relay, 130mm x 87mm x 62mm

1464790000 - RSM-8H 24V Interface Relay, 130mm x 87mm x 62mm

SKU: 1464790000 Download PDF

Variant:
  • 1464790000 - RSM-8H 24V Interface Relay, 130mm x 87mm x 62mm
Now $118.20
BEFORE   $0.00 Now $118.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8H 24V+ 1CO Z interface, engineered for a wide range of applications This device meets RoHS regulations and is certified with a UL file number (E141197) It operates efficiently within a temperature range of -25°C to 50°C, and can be stored safely between -40°C and 60°C With compact dimensions of 130 mm in width, 87 mm in height, and 62 mm in depth, this interface weighs just 265 grams, making it both lightweight and easy to handle.

Boasting a rated DC voltage of 24V and featuring an RCL relay type with potential-free contacts, it provides exceptional versatility for your needs.

Features and Benefits:

    •LED status displays for relay (green) and supply voltage (yellow).

    •Rated current for supply is 1A and for output is 4.6A.

    •Mechanical service life of 30 million switching cycles.

    •Designed with a PUSH IN connection for ease of use.

    •Clamping range from 0.12 mm² to 2.5 mm² for flexible wires.

Specifications:

 Depth 62 mm
 Height 87 mm
 Width 130 mm
 Net weight 265 g
 Operating temperature UL, max 25 °C
 Operating temperature UL, min 0 °C
 Rated current I N 16.7 mA
 Rated voltage DC U N (supply) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 24 V DC ± 10%
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clearance input/output ≥ 5.5 mm
 Clamping range, max 2.5 mm²
 Clamping range, min 0.12 mm²
 Type of connection PUSH IN
