1462090030 - 3m LiYY Cable, PAC-S1500-HE20, 0.25mm² for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

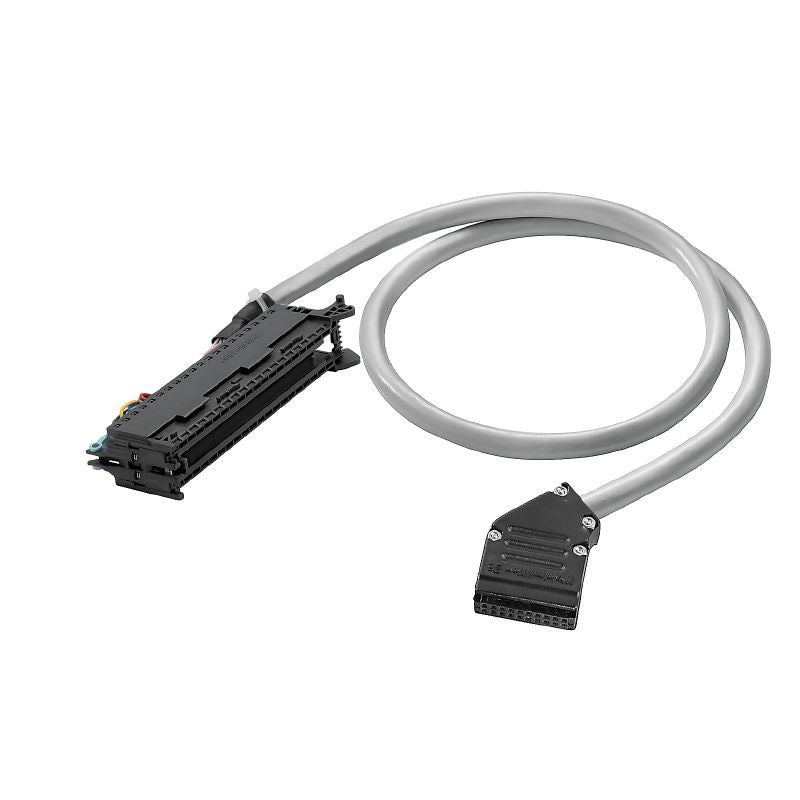

Experience reliable connectivity with the pre-assembled PAC-S1500-HE20-V1-3M cable, crafted from high-quality LiYY material This 3-meter cable has a wire cross-section of 025 mm², making it ideal for digital signal transmissions Weighing 362 grams, it boasts an outer diameter of 86 mm, with a tolerance of ± 1 mm for added flexibility Suitable for various environments, its storage temperature spans from -10 to 60 °C, while it operates effectively within -10 to 50 °C.

Additionally, this cable is RoHS compliant and includes a lead SVHC, ensuring safety and environmental standards are met.

Features and Benefits:

•Cable designed for digital signals.

•RoHS compliant with exemption.

•Capacity of 300 pF/m.

•Maximum permissible current strength per path is 1 A.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total current maximum is 3 A.

•Basic material is PVC.

Specifications:
