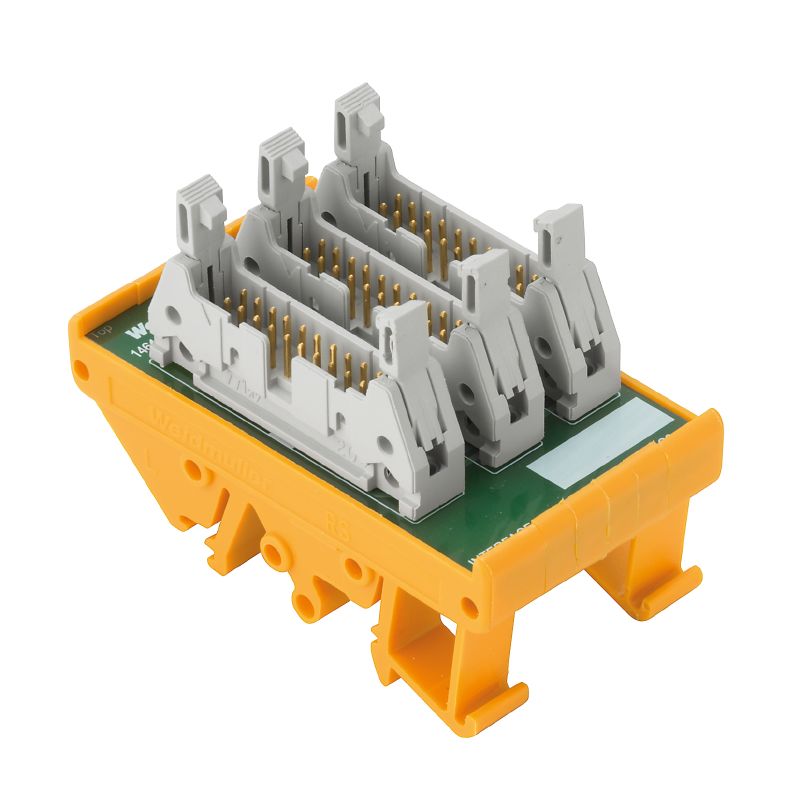

1461210000 - RS F20 X3 IN Connector, 20 Poles, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The RS F20 X3 IN is a versatile connection device, meticulously adhering to RoHS guidelines and equipped with three plug-in connectors that meet IEC60603-13 / DIN41651 standards Designed with 20 poles, it is ideal for applications requiring robust insulation and environmental resilience This unit can withstand storage temperatures ranging from -40 to 60 °C and operates optimally within -25 to 50 °C.

With a rated voltage of 50 V AC / 70 V DC and a connection current of 05 A per port, it accommodates a maximum total current of 3 A It features a surge voltage category of II and is certified for use in environments with pollution severity level 2, aligned with DIN EN 50178 insulation coordination standards.

Features and Benefits:

•Compliant with RoHS standards.

•20-pole connection on the control side.

•Durable design suitable for variable temperatures.

•Insulation test voltage of 0.35 kV.

•Connection type aligns with IEC60603-13 / DIN41651.

Specifications:
