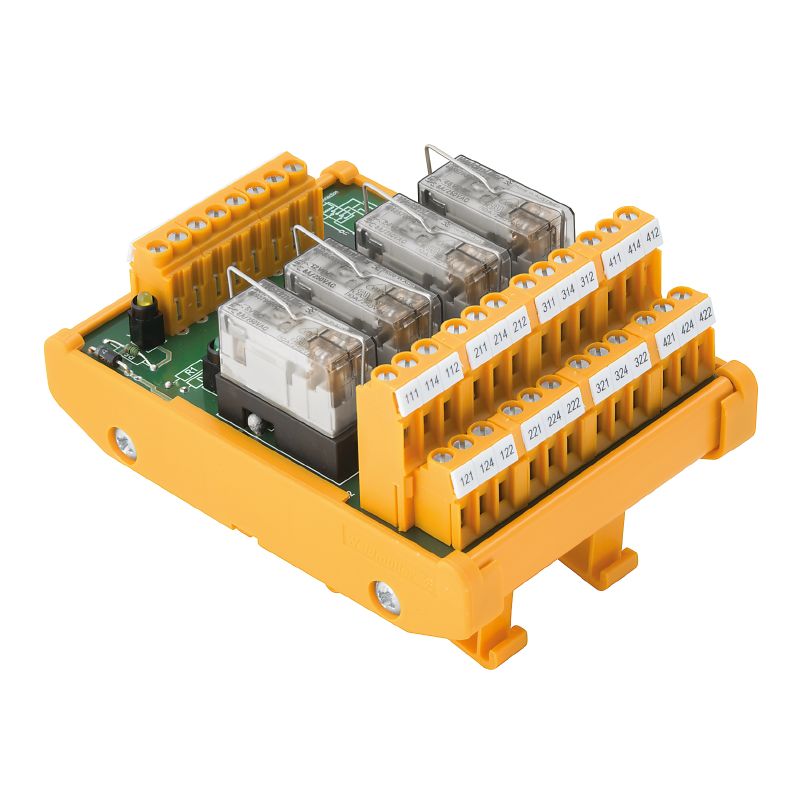

1457430000 - 24V RSM-4 BASE S Component with Easy Screw Connection

1457430000 - 24V RSM-4 BASE S Component with Easy Screw Connection

SKU: 1457430000   Download PDF

Select a Variant:
  • 1457430000 - 24V RSM-4 BASE S Component with Easy Screw Connection
Qty:
Now $50.04   Web pricing policy
BEFORE   $0.00 Now $50.04 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RSM-4 24V+ BASE S, a certified component with UR Certificate No E141197 that adheres to ROHS standards Designed for effortless integration, it utilizes a screw connection for a straightforward interface Please note, this item is marked as discontinued, but it remains compatible with a 24V power supply, making it an excellent choice for various applications.

Features and Benefits:

    •LED status display for each relay.

    •Compliant with ROHS with exemptions.

Specifications:

 Depth 51 mm
 Height 87 mm
 Width 69 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current I N 16.7 mA
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 1 A
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 24 V DC ± 10%
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Connection (field side) LL 5.08 mm
 Connection on control side LP 5.08 mm
