1457200000 - Reliable 24V Relay with Indicator, -25 to 50 °C Temperature Range

1457200000 - Reliable 24V Relay with Indicator, -25 to 50 °C Temperature Range

SKU: 1457200000   Download PDF

Select a Variant:
  • 1457200000 - Reliable 24V Relay with Indicator, -25 to 50 °C Temperature Range
Qty:
Now $253.88   Web pricing policy
BEFORE   $0.00 Now $253.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

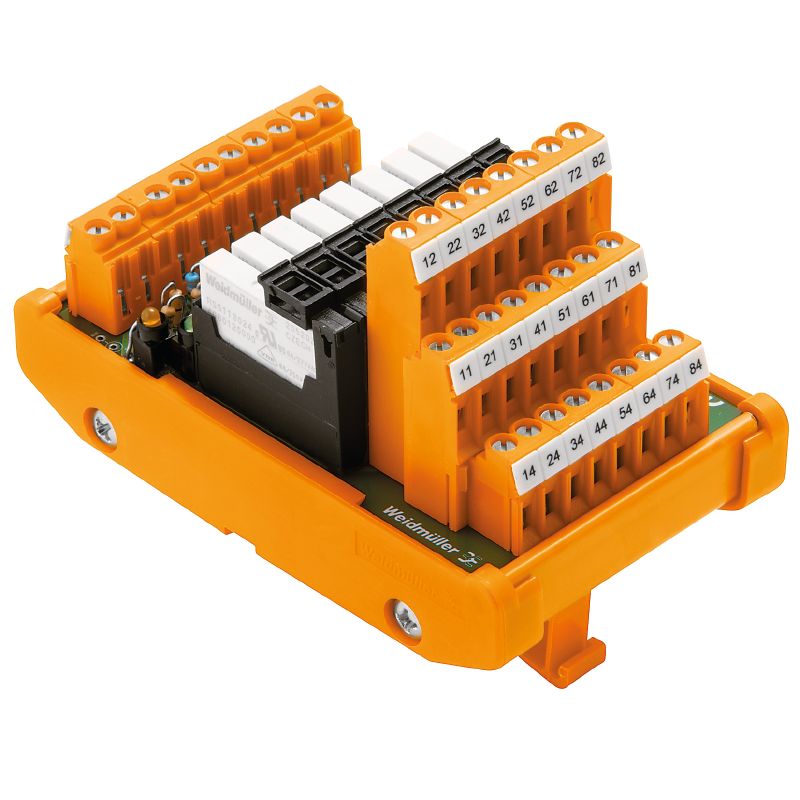

Introducing the RSMS-16 24VUC AU 1CO S interface relay, a dependable choice for various voltage applications Designed with screw connections for ease of use, this device meets RoHS standards A green status indicator keeps you informed about the relay’s operational state It operates efficiently within a temperature range of -25 °C to 50 °C, while it can be stored in environments ranging from -40 °C to 60 °C.

Although this product is discontinued, it offers precise dimensions and a specific net weight, along with connections that support a variety of cable types and sizes The relay is capable of handling both AC and DC voltage inputs, adhering to defined maximum ratings for its output contact and input/output insulation.

Features and Benefits:

    •LED status display per relay.

    •Screw connection type.

    •Manufactured under RoHS compliance.

    •Handles both AC and DC input voltages.

    •Potential-free contact output.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 112 mm
 Operating temperature UL, max. 50 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 15.6 A
 Rated voltage AC U N (input) 24 V AC ± 10%
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.5 A
 Mechanical service life 5 x 10^6 switching cycles
 Connection (field side) LL3R 5.08 mm
 Connection on control side LP 5.08 mm, LL 5.08 mm
 Input current 6 mA, 15.6 mA
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 1 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Flexible with sleeve, max. 2.5 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
