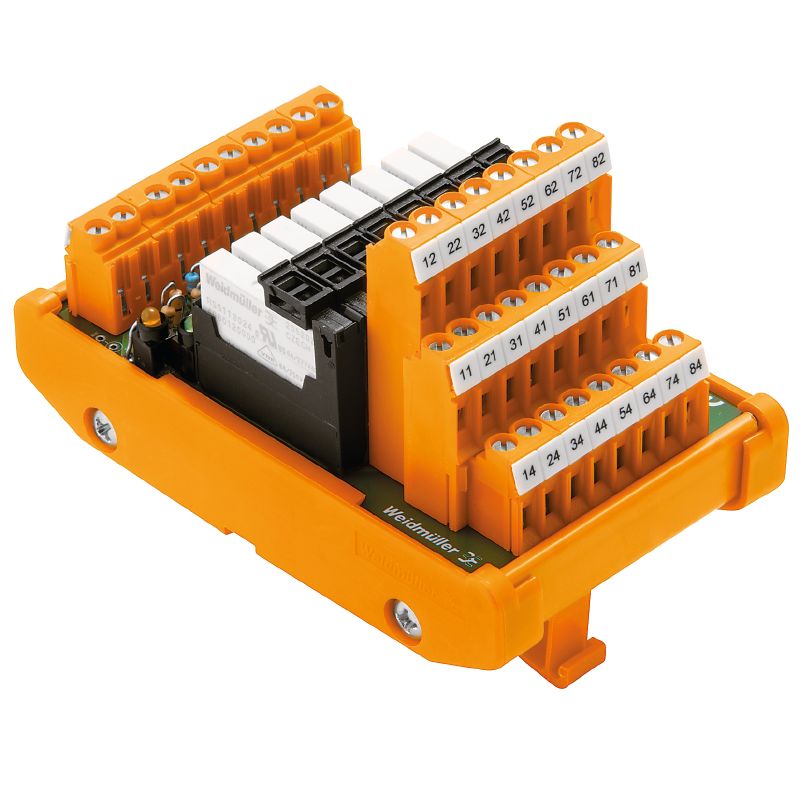

1457190000 - RSMS-16 24VAC/DC 1 CO S with Screw Connection

1457190000 - RSMS-16 24VAC/DC 1 CO S with Screw Connection

SKU: SKU: 1457190000   Download PDF

Select a Variant:
  • 1457190000 - RSMS-16 24VAC/DC 1 CO S with Screw Connection
Qty:
Regular price Now $227.91   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $227.91 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

The RSMS-16 is an efficient interfacing solution that features a reliable screw connection It operates on a voltage of 24 VAC/DC and utilizes a configuration of 1 CO S This product conforms to RoHS standards and meets certain exemptions Additionally, it is recorded under UL File Number E141197, ensuring its reliability and compliance.

Features and Benefits:

    •RoHS compliant.

    •LED status display in green.

    •Suitable for screw connection.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 112 mm
 Net weight 349 g
 Operating temperature -25...50 °C
 Rated current I N 15.6 A
 Rated voltage AC U N (input) 24 V
 Rated voltage DC U N (input) 24 V
 Relay type RSS
 Max. AC continuous current 4.5 A
 Min. contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Clamping range max. 6 mm²
 Clamping range min. 0.5 mm²
 Tightening torque max. 0.6 Nm
 Tightening torque min. 0.5 Nm
