1457170000 - 24V RSMS-16 Relay Interface with LED Indicator

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

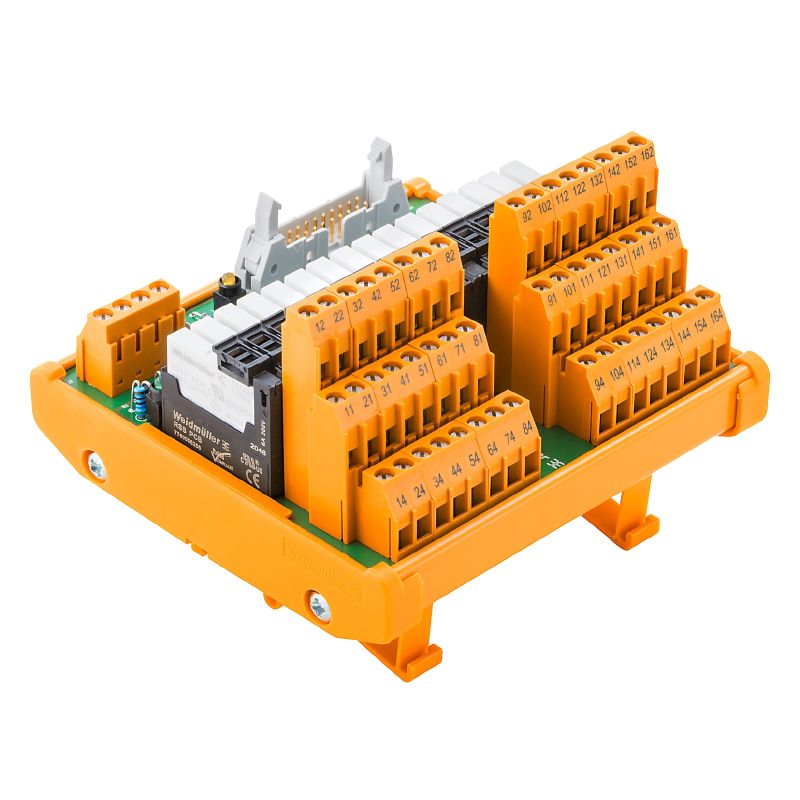

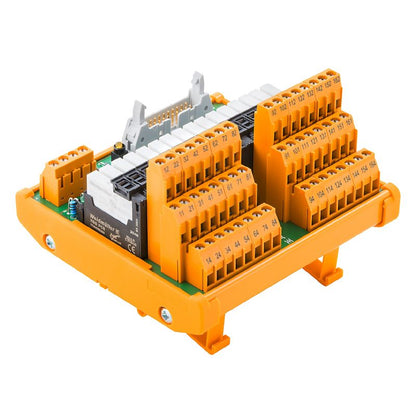

Introducing the RSMS-16 24V+ BASE S, a compact and efficient device engineered with a screw connection interface for easy installation This product adheres to RoHS standards and carries the UL certification (E141197) Please note, this item is now listed as discontinued Measuring 85 mm in depth, 112 mm in width, and standing 109 mm tall, it weighs 263 g, making it lightweight and manageable The unit operates effectively within a temperature range of -25 °C to 50 °C and is safe for storage between -40 °C to 60 °C.

For added functionality, it includes a dual LED status indicator: a green light for relay status and a yellow light for supply voltage With an input voltage of 24 V DC and a rated input current of 71 A, this device is designed to meet your electrical needs efficiently.

Features and Benefits:

•RoHS Compliant.

•LED status display for relay and supply voltage.

•Screw connection type.

•5 x 10^6 mechanical service life of switching cycles.

Specifications:
