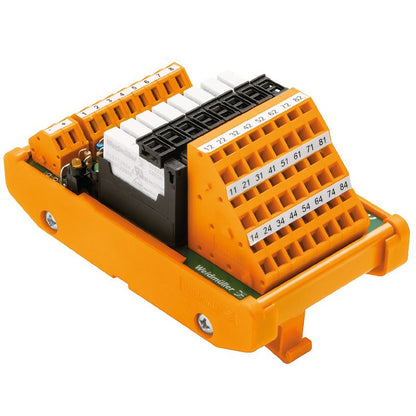

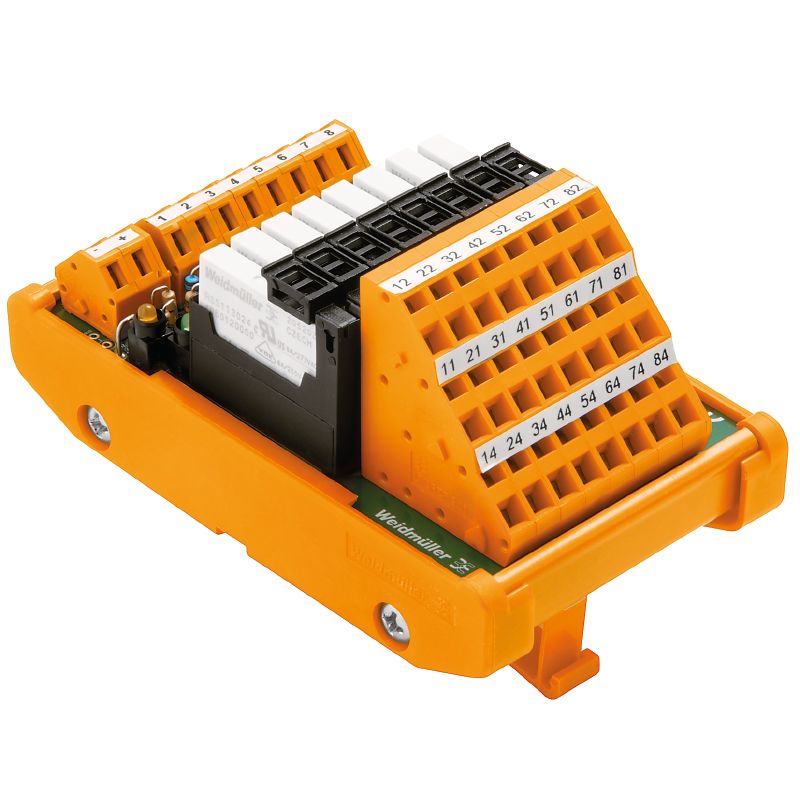

1457090000 - UL Certified 12V Relay, 76x109x112mm, 1A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-16 12V-1CO Z relay, engineered to function effectively in diverse conditions With UL certification (file number E141197), this relay meets stringent safety standards It features a tension-clamp connection interface and can be ordered using the part number 1457090000 Measuring 76 mm in depth, 109 mm in height, and 112 mm in width, this relay has a lightweight design, weighing just 303 grams.

It operates on a 12V DC voltage supply and supports a maximum current of 1A The relay is reliable across a wide temperature range, functioning optimally from -25°C to 50°C and can be stored in conditions between -40°C and 60°C Additionally, it is RoHS compliant with specific exemptions noted, and it adheres to environmental regulations concerning lead content Designed for durability, the relay boasts a mechanical service life of up to 5 million switching cycles, with multiple voltage and current specifications for input and output.

Connectivity options are versatile, accommodating various configurations for both field and control applications.

Features and Benefits:

•RoHS Compliant.

•LED status display for outputs.

•Potential-free contact output.

•Tension-clamp connection type.

•Mechanical service life rated at 5 million switching cycles.
