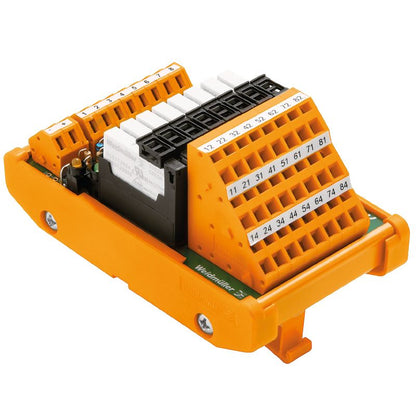

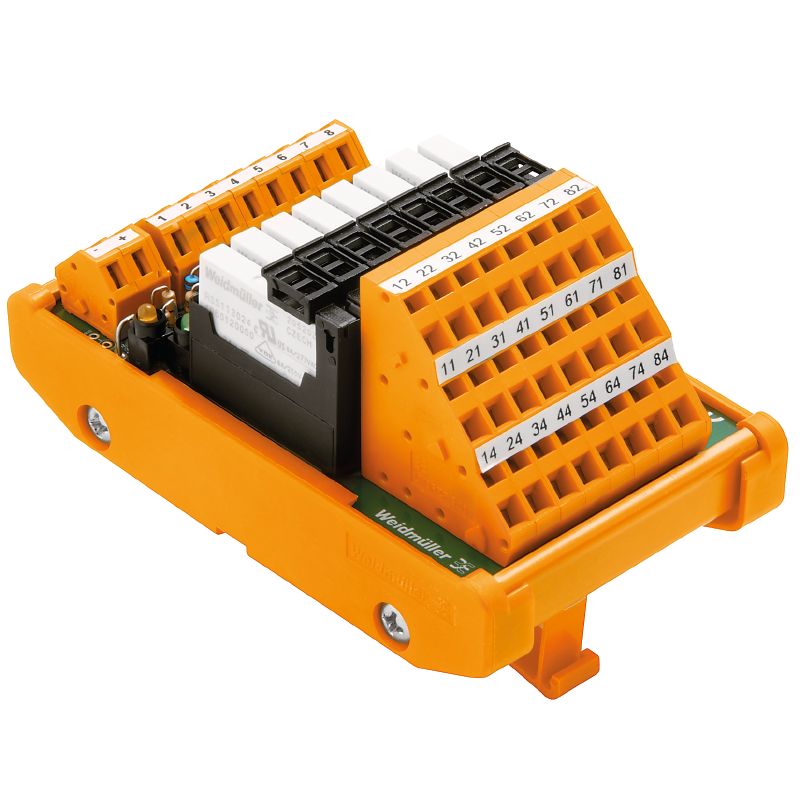

1457040000 - RSMS-16 12V Relay, Compact 76mm x 112mm, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-16 12V+ 1CO Z, a versatile device compliant with RoHS standards, highlighting its commitment to environmental responsibility It is tailored for diverse applications with its tension-clamp connection interface Please note, this product has been discontinued and is no longer available for purchase Measuring 112 mm in width, 76 mm in depth, and 109 mm in height, it has a net weight of 304 g, making it compact and manageable.

The device operates efficiently in a temperature range from -25°C to 50°C and can be stored under conditions as low as -40°C and as high as 60°C For electrical specifications, it accepts an input voltage of 12 V DC ± 10%, with a current draw of 142 mA It utilizes an RSS relay type for output, capable of handling voltages up to 250 V AC and a maximum continuous AC current of 45 A The contacts are made of AgNi 90/10 for reliable performance.

Additionally, the product boasts an impressive mechanical lifespan of 5 x 10^6 switching cycles and is rated at pollution severity level 2, indicating its durability and efficiency in various environments.

Features and Benefits:

•RoHS compliant with exemption.

•LED status display for relays in green and supply voltage in yellow.

•Tension-clamp connection for ease of installation.

•Mechanical service life of 5 million switching cycles.

Specifications:
