1456830000 - Compact 24V AC/DC Relay with Screw Connections, 85x109x61mm

1456830000 - Compact 24V AC/DC Relay with Screw Connections, 85x109x61mm

SKU: 1456830000 Download PDF

Variant:
  • 1456830000 - Compact 24V AC/DC Relay with Screw Connections, 85x109x61mm
Now $131.38
BEFORE   $0.00 Now $131.38
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

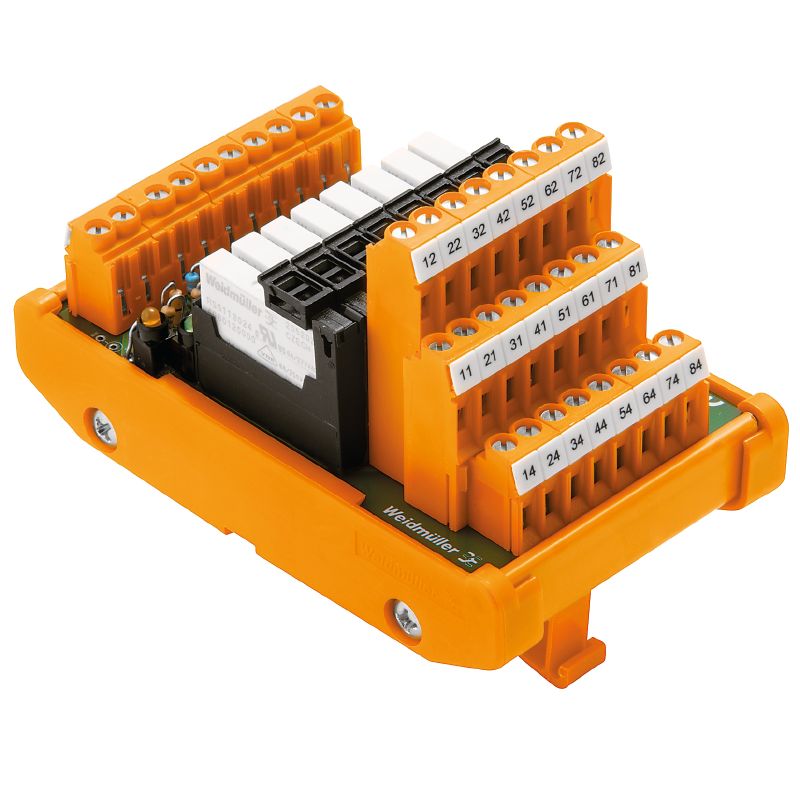

Discover the reliability of the RSMS-8 relay, designed to operate at 24 volts for both AC and DC applications This interface model features convenient screw terminals for easy wiring and is certified with a UL file number for your peace of mind Compactly built, it measures 85 mm deep, 109 mm tall, and 61 mm wide, weighing just 183 grams Additionally, this relay complies with RoHS standards and functions efficiently within designated temperature ranges, making it a safe and effective choice for your electrical needs.

Features and Benefits:

    •Approval from RoHS.

    •LED status display is green.

    •Mechanical service life of 5 x 10^6 switching cycles.

    •Potential-free contact output type.

    •Connections on the field side and control side facilitate easy installation.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 61 mm
 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
 Rated current I N 15.6 A
 Rated voltage AC U N (input) 24 V
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.5 A
 Input voltage 24 V AC ± 10%, 24 V DC ± 10%
 Input current 6 mA, 15.6 mA
 Relay type RSS
 Maximum AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
 GTIN (EAN) 4050118263176
 Order No. 1456830000
