1456810000 - RSMS-8 Interface 85mm, UL Certified, RoHS Compliant

1456810000 - RSMS-8 Interface 85mm, UL Certified, RoHS Compliant

SKU: 1456810000   Download PDF

Select a Variant:
  • 1456810000 - RSMS-8 Interface 85mm, UL Certified, RoHS Compliant
Qty:
Now $95.52   Web pricing policy
BEFORE   $0.00 Now $95.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

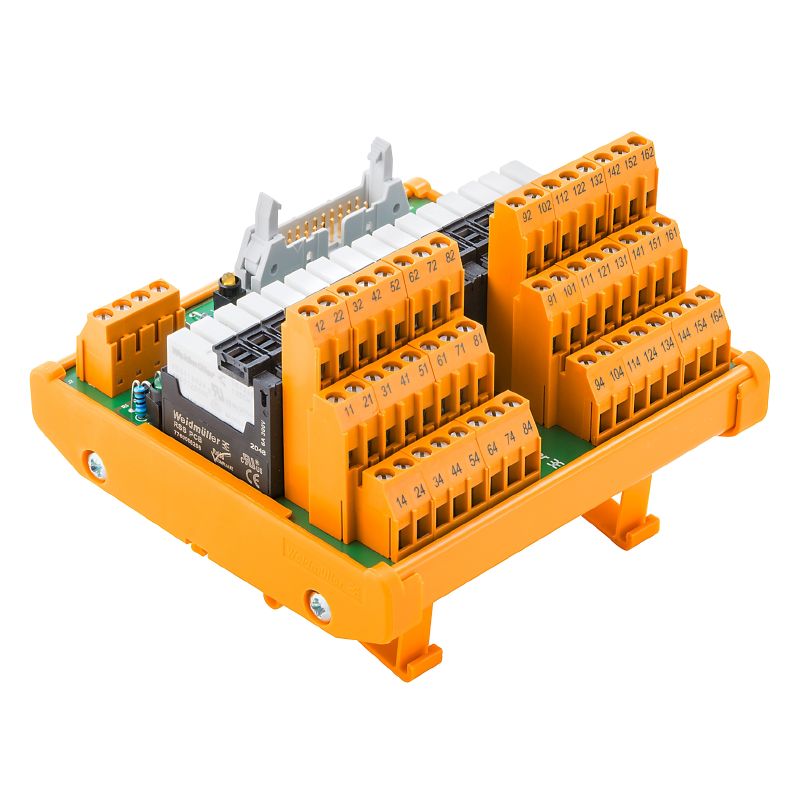

Introducing the RSMS-8 24V+ BASE S, a reliable interface device featuring a sturdy screw connection This model meets RoHS standards and boasts UL certification (E141197) With compact dimensions of 85 mm in depth, 109 mm in height, and 61 mm in width, it is lightweight at just 173 grams Engineered to perform in a wide temperature range from -25 to 50 °C, this product is currently noted as discontinued.

Perfect for various applications, it combines safety and functionality in one compact design.

Features and Benefits:

    •Compliant with RoHS regulations.

    •LED status display for relay shows green when active.

    •Yellow LED indicates supply voltage status.

    •Type of connection is screw connection.

    •Mechanical service life of 5 x 10^6 switching cycles.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 61 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current I N 7.1 A
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 3.5 A
