1456700000 - 24V DC Relay with LED Display & RoHS Compliance

1456700000 - 24V DC Relay with LED Display & RoHS Compliance

SKU: 1456700000 Download PDF

Variant:
  • 1456700000 - 24V DC Relay with LED Display & RoHS Compliance
Now $122.63
BEFORE   $0.00 Now $122.63
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

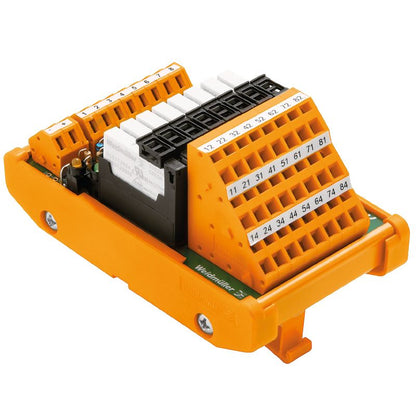

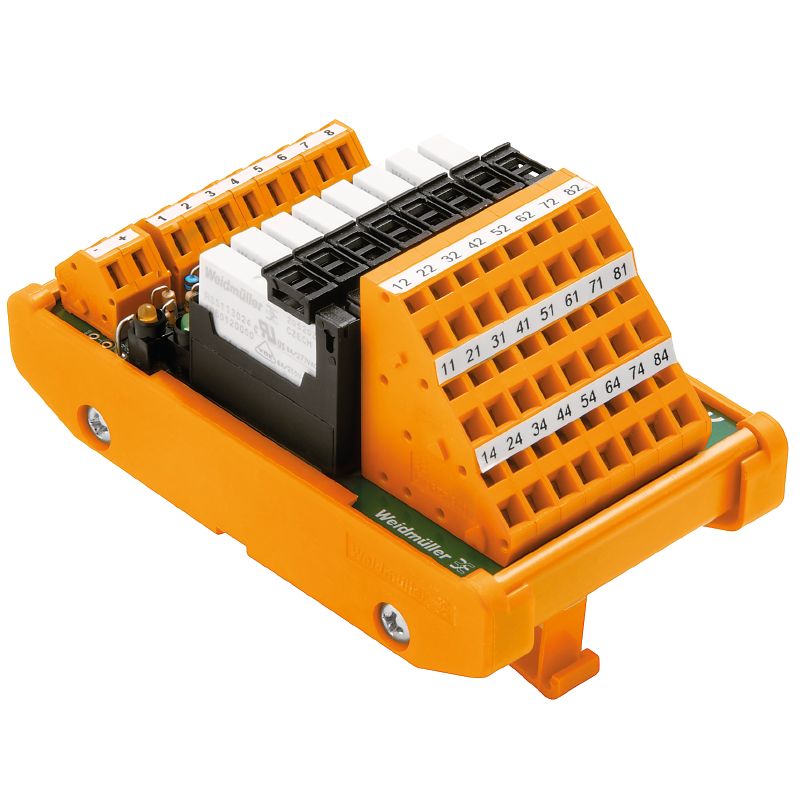

Introducing the RSMS-8 24V+ 1CO Z, a versatile device equipped with a tension-clamp connection that suits a wide array of applications while adhering to RoHS standards This unit boasts a UL certification (No E141197) and operates efficiently at a rated voltage of 24V DC and 250V AC, with a maximum current capacity of 35A Its design includes an LED display to indicate supply voltage status, complemented by individual green LEDs for each relay state.

Engineered for reliability, this model guarantees performance over an impressive mechanical lifespan of 5 million switching cycles.

Features and Benefits:

    •LED status display indicating supply voltage.

    •Mechanical lifespan of 5 million switching cycles.

    •Complies with RoHS regulations.

Specifications:

 Depth 76 mm
 Height 109 mm
 Width 61 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 1 A
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 3.5 A
 Input voltage 24 V DC ± 10%
 Input current 7.1 mA
 Relay type RSS
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.13 mm²
 Flexible with sleeve, max. 1.5 mm²
 Flexible, max. H05(07) V-K 1.5 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Max. wire cross-section, AWG AWG 14
 Min. wire cross-section, AWG AWG 26
 Stripping length 7 mm
