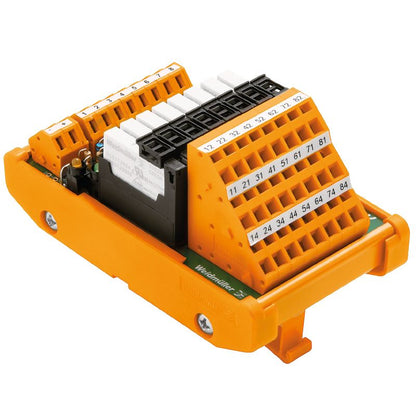

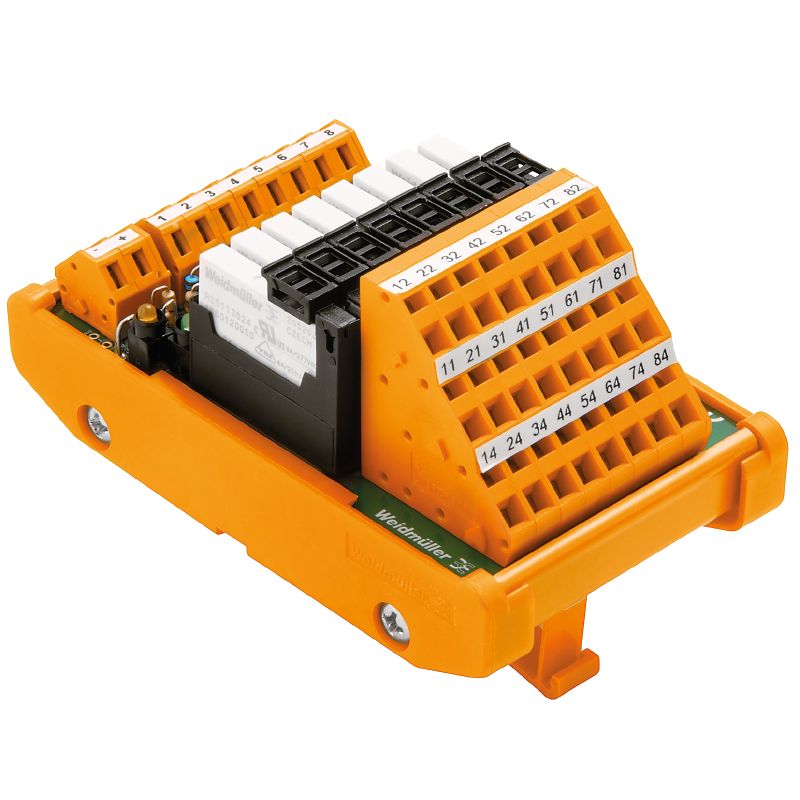

1456690000 - RoHS-Certified 12V Signal Relay, 76mm Depth, UL Approved

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-8 12V+ 1CO Z, a reliable device that meets RoHS compliance standards This unit boasts a UL certification marked by number E141197 With compact dimensions of 76 mm (2992 inches) in depth, 109 mm (4291 inches) in height, and 61 mm (2402 inches) in width, it has a lightweight design at 193 g, making it easy to handle Although this model is discontinued, it performs effectively within a temperature spectrum of -25 to 50 °C during operation, and it can be safely stored in conditions ranging from -40 to 60 °C.

Functioning at an operating voltage of 12 V DC, it allows for a maximum output current of 35 A, making it suitable for a variety of signal relay applications The connection is facilitated through a tension-clamp interface, featuring a standard LM3RZF 508 for field connections and LMZF for control-side connections.

Features and Benefits:

•LED status display indicating relay condition in green.

•LED status for supply voltage in yellow.

•Potential-free contact relay type.
