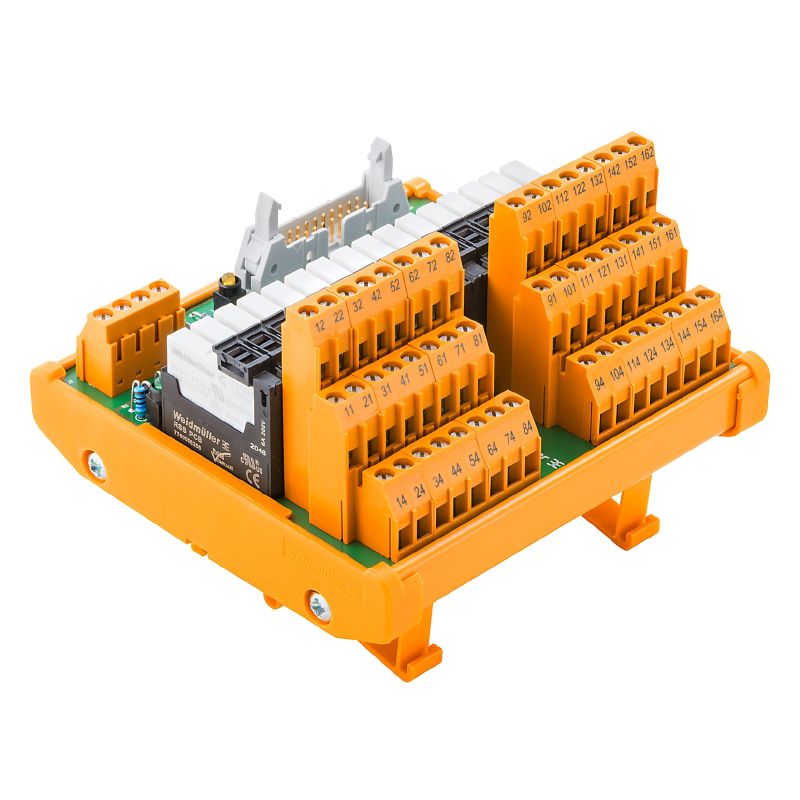

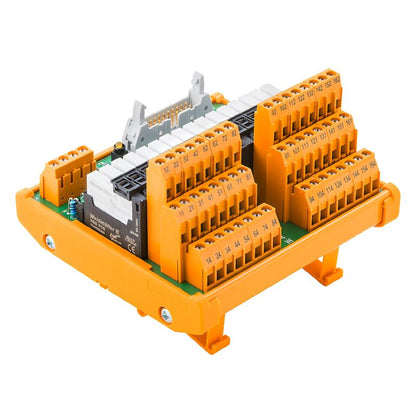

1456670000 - RSMS-8 Interface Device 85mm Depth, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-8 48V-1CO S, a versatile interface device featuring a reliable screw connection This model is compliant with RoHS regulations and carries the UL certification number E141197 Please note that this product is marked as discontinued Measuring 85 mm in depth, 109 mm in height, and 61 mm in width, it boasts a lightweight design with a net weight of 209 grams The device operates efficiently in a temperature range of -25 to 50 °C, ensuring performance in a variety of environments.

For storage, it can withstand temperatures from -40 °C to 60 °C Additionally, its LED indicators provide clear status updates, with green lighting for relay operation and yellow for supply voltage.

Features and Benefits:

•Operating temperature range of -25 to 50 °C.

•Storage temperature range of -40 to 60 °C.

•LED status display for relay and supply voltage.

•Screw connection type provides reliability.

Specifications:
