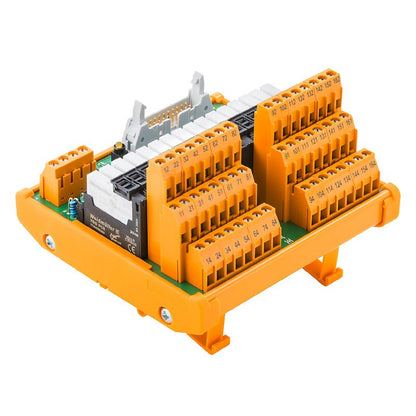

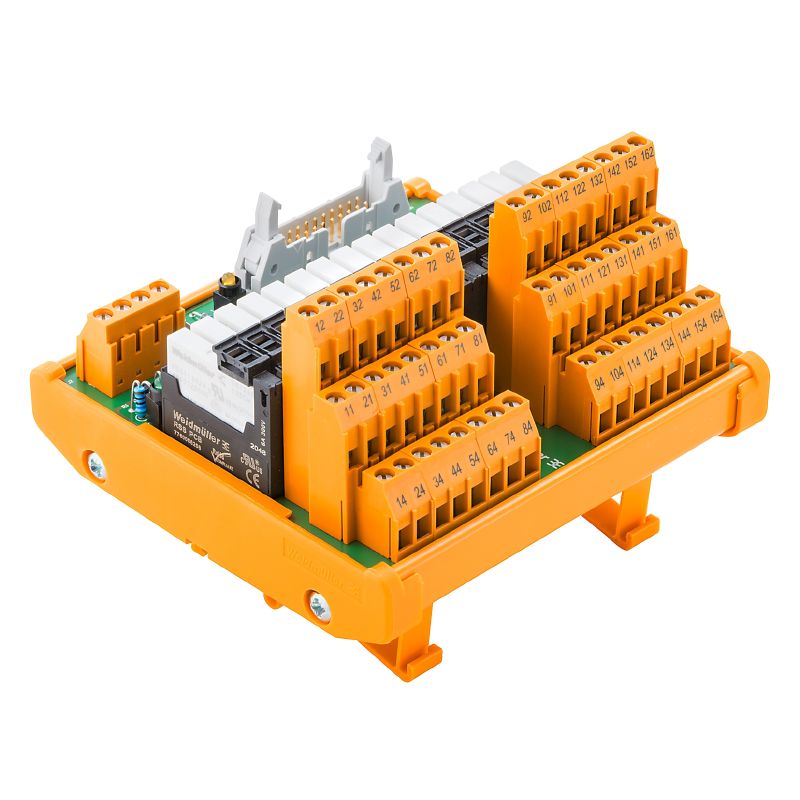

1456650000 - RSMS-8 Relay, 24V DC, 85mm Depth, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable control with the RSMS-8 24V-1CO S relay, expertly crafted with screw connection interfaces to enhance performance in various applications This model adheres to RoHS standards and holds the UL certification number E141197 for added assurance It operates efficiently in temperatures ranging from -25 to 50 °C while in use, and maintains integrity in storage environments between -40 to 60 °C.

With dimensions of 85 mm in depth, 109 mm in height, and 61 mm in width, it weighs 221 grams, making it a compact yet powerful solution for electrical systems The relay accommodates input voltages of up to 24 V DC and output voltages of 250 V AC, ensuring versatility across applications Two indicator LEDs provide valuable feedback: a green LED signals relay status, while a yellow LED shows supply voltage status.

Designed to accept various wire sizes, this relay offers impressive durability, boasting a mechanical lifespan of up to 5 million switching cycles.

Features and Benefits:

•RoHS Compliant with exemption.

•LED status displays for operation and power.

•Screw connection type for reliable electrical connectivity.

Specifications:
