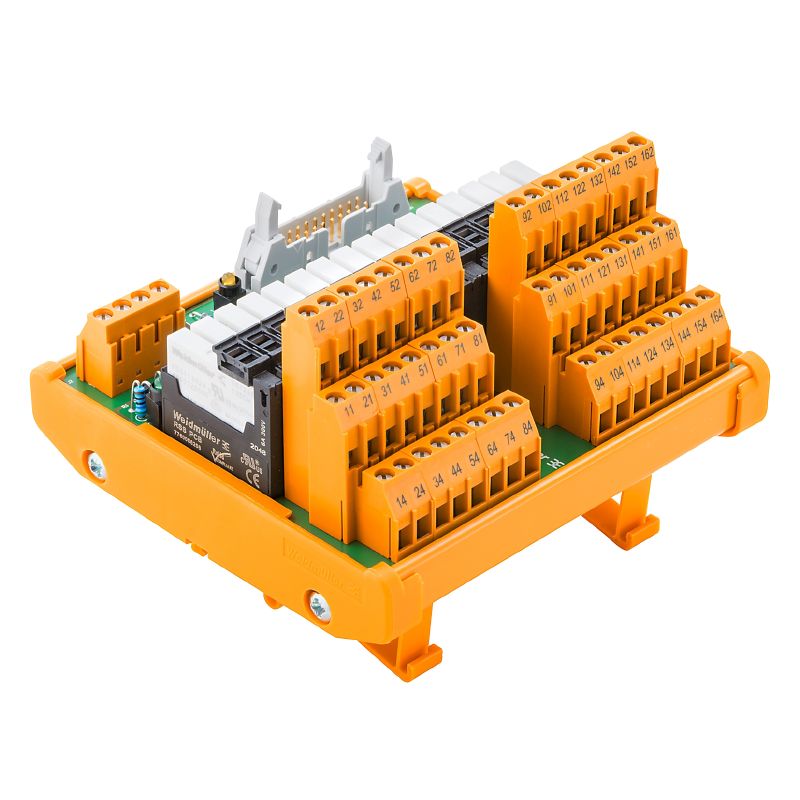

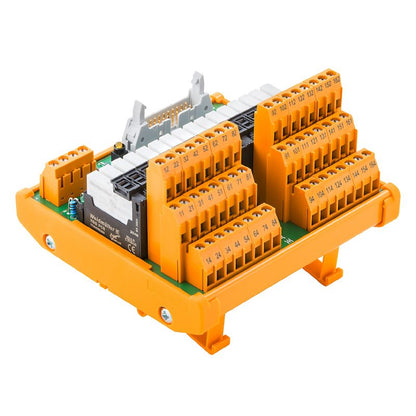

1456640000 - RSMS-8 12V Relay, 85mm Deep, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-8 12V-1CO S, a reliable and eco-friendly component compliant with RoHS regulations and featuring UL certification number E141197 This product is designed with a screw connection interface and is marked as discontinued with a specified delivery status Measuring 85 mm in depth, 109 mm in height, and 61 mm in width, this device is compact and lightweight at only 210 grams It boasts an operating temperature range from -25°C to 50°C, with a storage temperature tolerance between -40°C and 60°C.

Adhering to strict environmental standards, it comes with documented RoHS exemptions The RSMS-8 is rated for a 12V supply voltage, supporting a maximum output current of 35A It features an RSS classified relay type, with the contacts made of a durable AgNi 90/10 material, ensuring long-lasting performance Perfect for various applications, this product combines functionality with eco-conscious design.

Features and Benefits:

•LED status display indicators for relay and supply voltage.

•Mechanical service life of 5 x 10^6 switching cycles.

•Connection options for field and control sides.

•Potential-free contact for output.

Specifications:
