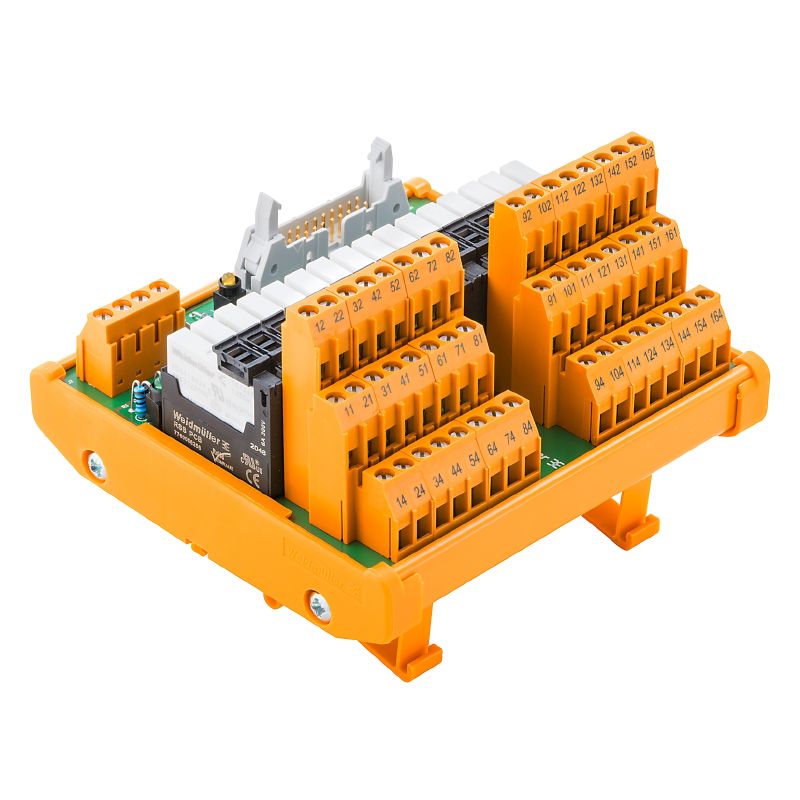

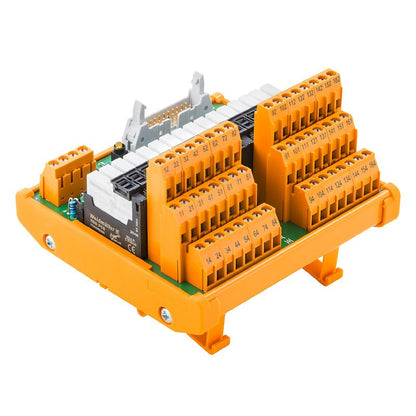

1456620000 - 85mm RSMS-8 48V Module with UL Certification

1456620000 - 85mm RSMS-8 48V Module with UL Certification

SKU: 1456620000 Download PDF

Variant:
  • 1456620000 - 85mm RSMS-8 48V Module with UL Certification
Now $132.52
BEFORE   $0.00 Now $132.52
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-8 48V+ 1CO S module, designed with a user-friendly screw connection interface This module meets various compliance standards, including RoHS, and boasts a UL certification number for added reliability With dimensions measuring 85 mm in depth, 109 mm in height, and 61 mm in width, it has a compact design and weighs just 209 g Functioning effectively in temperatures ranging from -25 to 50 °C, this module is well-suited for diverse environments.

Perfect for those looking for a dependable and compliant solution.

Features and Benefits:

    •Switching cycles rated for up to 5 million.

    •Green LED for relay status and yellow LED for supply voltage display.

    •Potential-free contact relay type with AgNi 90/10 contacts.

    •Designed for input and output voltages up to 250 V AC.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 61 mm
 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
 Rated current I N 4.5 A
 Rated voltage DC U N (supply) 48 V
 Rated voltage DC U N (input) 48 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 3.5 A
 Input voltage 48 V DC ± 10%
 Input current 4.5 mA
 Mechanical service life 5 x 10^6 switching cycles
 Pollution severity level 2
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
