1456610000 - RSMS-8 24V Module 85mm Depth with LED Display

1456610000 - RSMS-8 24V Module 85mm Depth with LED Display

SKU: 1456610000 Download PDF

Variant:
  • 1456610000 - RSMS-8 24V Module 85mm Depth with LED Display
Now $115.42
BEFORE   $0.00 Now $115.42
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

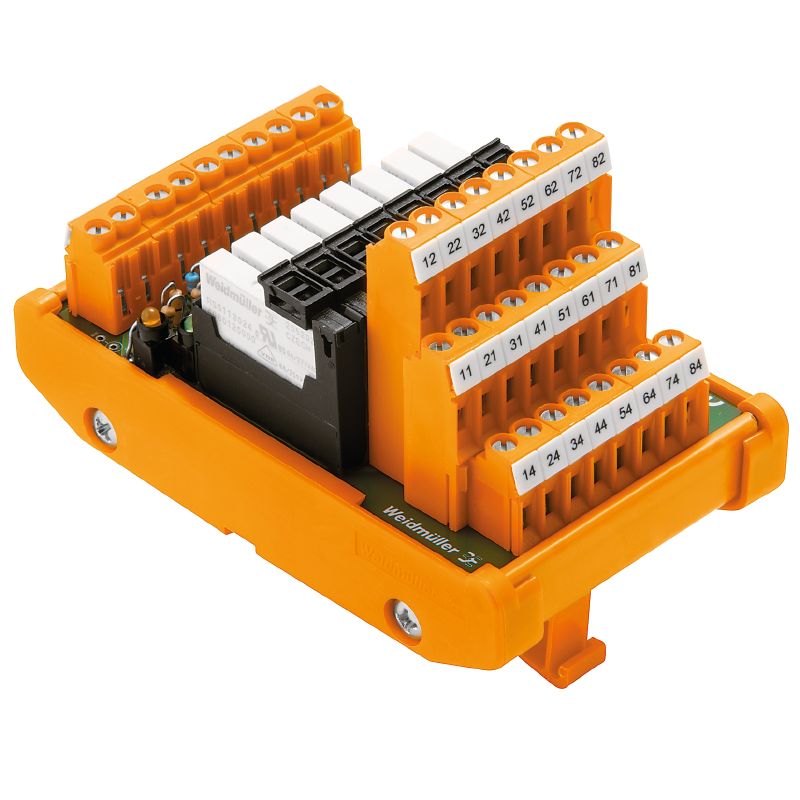

Introducing the RSMS-8 24V+ 1CO S interface module, engineered for screw connections and compliant with ROHS standards, certified under number E141197 With compact dimensions of 85mm deep, 109mm tall, and 61mm wide, this module weighs 221 grams, making it lightweight and easy to install It operates efficiently across a temperature range of -25°C to +50°C Equipped with a green LED indicator for relay status and a yellow LED to display supply voltage, this device is versatile for a range of electrical applications, delivering reliable performance with specified electrical ratings.

Features and Benefits:

    •Interface module with screw connection.

    •ROHS compliant with exemptions 7a, 7cI.

    •LED status indicators for relay and supply voltage.

    •Mechanical service life of 5 x 10^6 switching cycles.

Specifications:

 Depth 85 mm
 Height 109 mm
 Width 61 mm
 Net weight 221 g
 Operating temperature -25...50 °C
 Rated current I_N 7.1 A
 Rated voltage DC U_N (supply) 24 V
 Rated voltage AC U_N (output) 250 V
 Rated current I_max (output) 3.5 A
 Input voltage 24 V DC ± 10%
 Relay type RSS
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
