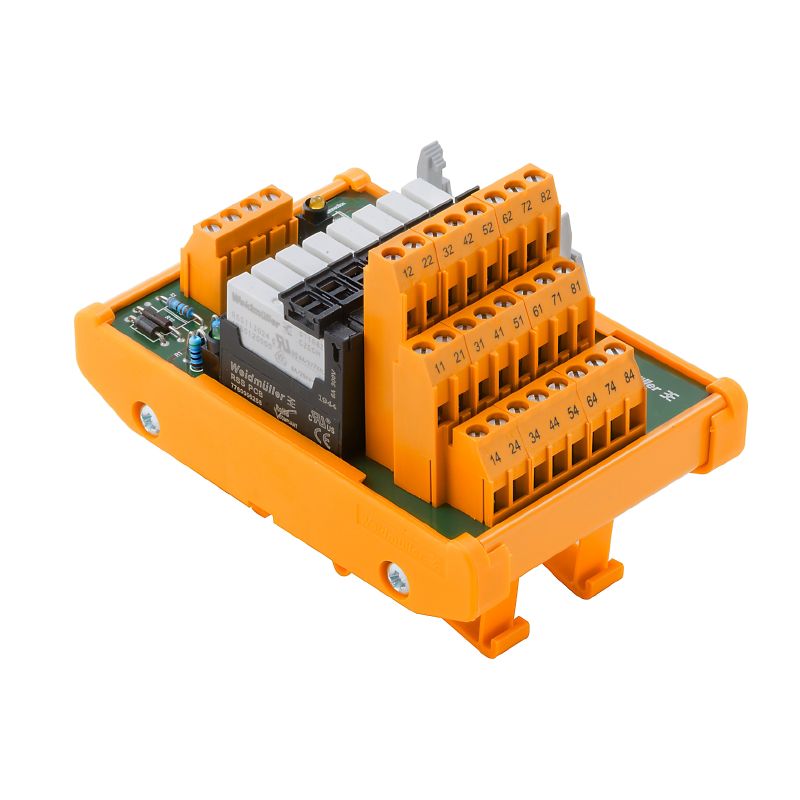

1456580000 - Reliable 24V RSMS-8H Relay Module with 1 Contact Output

1456580000 - Reliable 24V RSMS-8H Relay Module with 1 Contact Output

SKU: 1456580000 Download PDF

Variant:
  • 1456580000 - Reliable 24V RSMS-8H Relay Module with 1 Contact Output
Now $129.10
BEFORE   $0.00 Now $129.10
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Meet the RSMS-8H relay module, engineered for dependable operation at a voltage of 24V This module boasts a single contact output, making it ideal for various applications Crafted for durability, it adheres to ROHS standards and is recognized for its environmental compliance through multiple certifications Designed to function effectively within specified temperature limits, this relay module guarantees reliable performance in a range of conditions, whether in operation or during storage.

Features and Benefits:

    •Compliant with ROHS standards.

    •LED status display indicators for operational monitoring.

    •Designed for a mechanical service life of 5 x 10^6 switching cycles.

    •No fuses required for relay or power supply.

    •Utilizes tension-clamp connection.

Specifications:

 Dimensions {'Depth': '76 mm', 'Height': '109 mm', 'Width': '61 mm'}
 Operating temperature {'Max': '50 °C', 'Min': '-25 °C'}
 Rated voltage DC supply 24 V
 Rated current (supply) 1 A
 Relay type RSS
 Type of output Potential-free contact
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 5 V
 Pollution severity level 2
 Insulation test voltage AC 1.2 kV
 Clamping range (field connection) {'Max': '2.5 mm²', 'Min': '0.13 mm²'}
 Wire cross-section {'Max (AWG)': '14', 'Min (AWG)': '26'}
 Stripping length 7 mm
