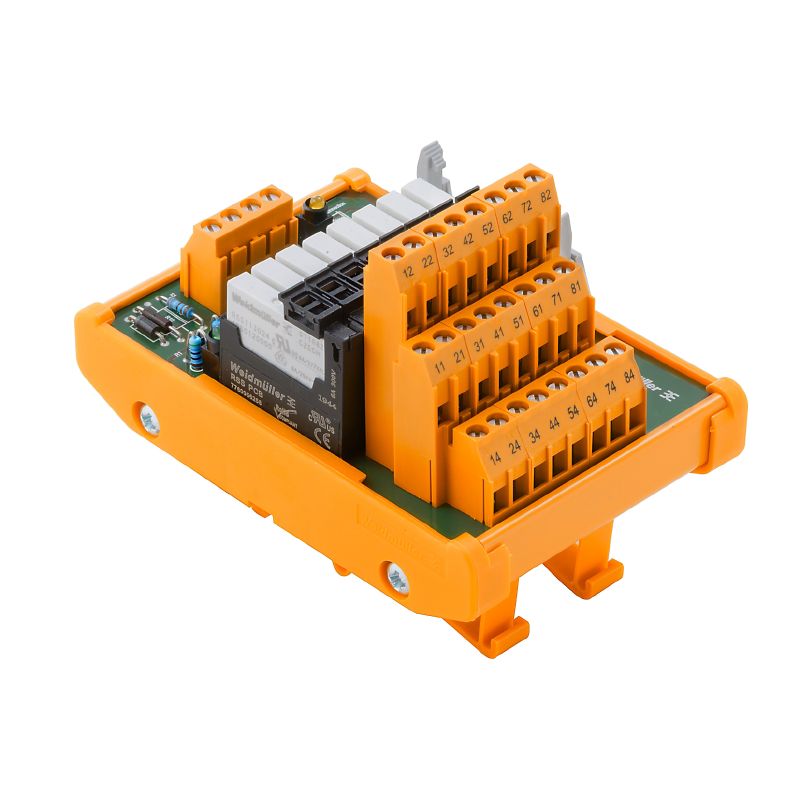

1456550000 - 24V DC Relay Module with Screw Connection, 1A Rating

SKU: SKU: 1456550000 Download PDF

Variant:

1456550000 - 24V DC Relay Module with Screw Connection, 1A Rating

Now $118.96

~~BEFORE $0.00~~ Now $118.96

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile relay module ideal for a variety of electrical applications This module features a secure screw connection interface and meets numerous regulatory standards, including RoHS Engineered to function efficiently within specific temperature ranges, it guarantees dependable operation With a rated current of 1A and a voltage range of 24V DC, it is perfectly suited for control applications.

The relay, type RSS, offers a potential-free contact output, making it compatible with multiple systems.

Features and Benefits:

•LED status indicators for both relay and supply voltage.

•5 x 10^6 mechanical switching cycles.

•Screw connection for ease of installation.

•Compact design with precise dimensions for easy integration.

Specifications:

Operating temperature	-25...50 °C
Storage temperature	-40...60 °C
Rated current I_N	7.1 mA
Rated voltage U_N	24 V DC
Rated voltage AC U_N (output)	250 V
Rated current I_max (output)	3.5 A
Mechanical service life	5 x 10^6 switching cycles
Connection type	Screw connection
Dimensions	{'Depth': '85 mm', 'Height': '109 mm', 'Width': '61 mm'}
Net weight	232.878 g
